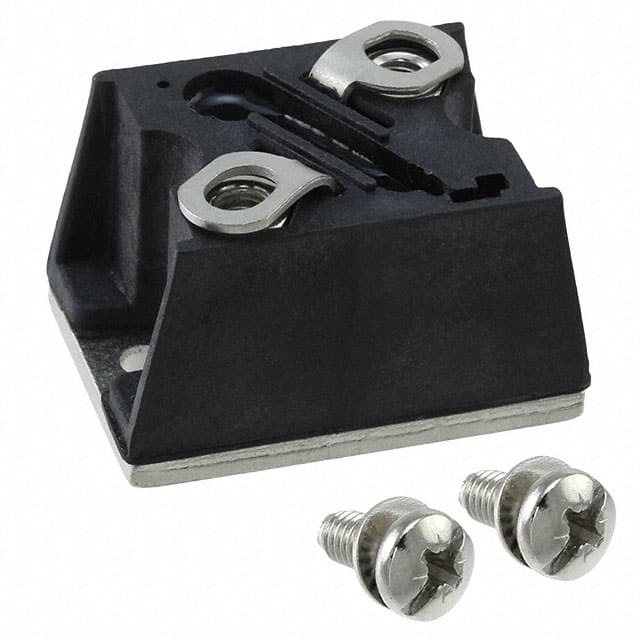

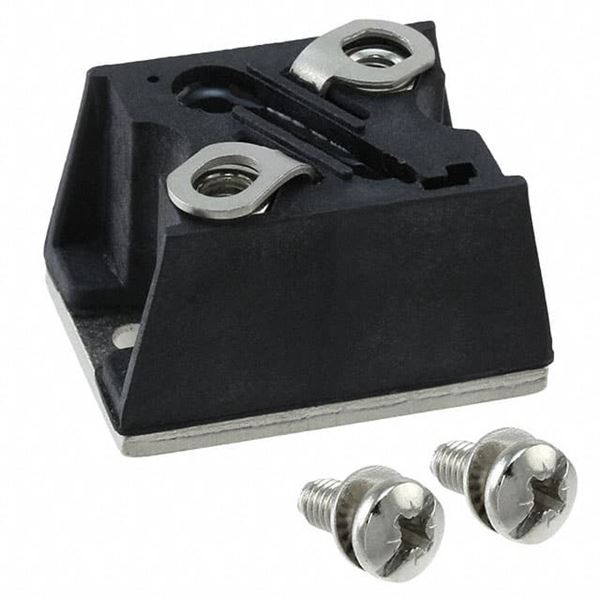

T70HFL10S05

SKU: 66451

Manufacturer: Vishay

Rectifier Diode Switching 100V 70A 500ns 2-Pin Case D-55

1300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	70
Peak Non-Repetitive Surge Current (A)	870
Peak Forward Voltage (V)	1.73
Peak Reverse Current (uA)	100
Peak Reverse Recovery Time (ns)	500
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	Case D-55
Pin Count	2
Terminal Form	Screw
Package Height	23.5
Package Length	41(Max)
Package Width	27
