T70HF40

SKU: 123010

Manufacturer: Vishay

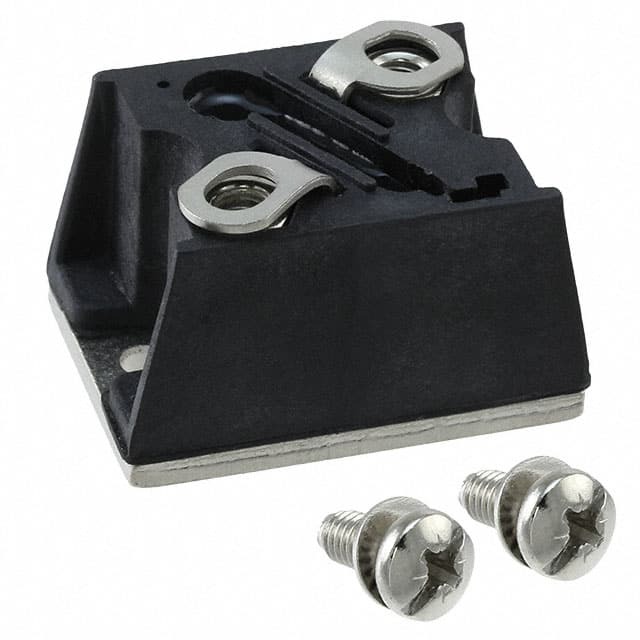

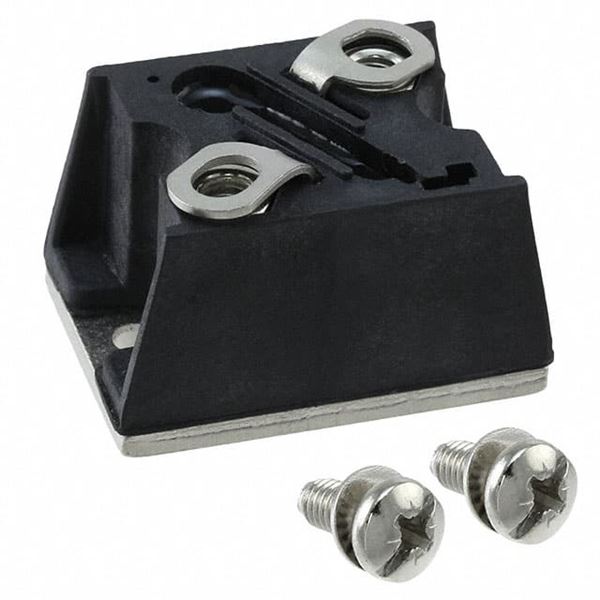

Rectifier Diode Switching 400V 70A 2-Pin Case D-55

1630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	400
Maximum Continuous Forward Current (A)	70
Peak Non-Repetitive Surge Current (A)	1250
Peak Forward Voltage (V)	1.35
Peak Reverse Current (uA)	100
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	Case D-55
Pin Count	2
Terminal Form	Screw
Package Height	23.5
Package Length	41(Max)
Package Width	27
