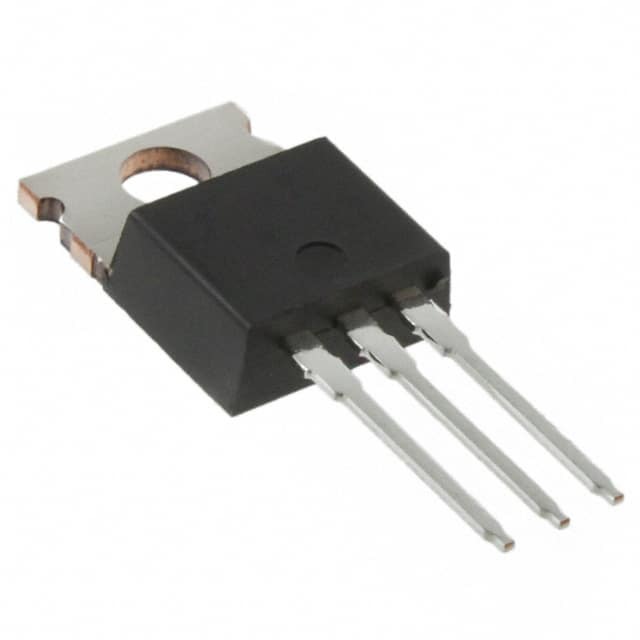

SUP85N10-10-GE3

SKU: 66439

Manufacturer: Vishay

Trans MOSFET N-CH 100V 85A 3-Pin(3+Tab) TO-220AB

2200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	3
Maximum Continuous Drain Current (A)	85
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	10.5@10V
Typical Gate Charge @ Vgs (nC)	105@10V
Typical Gate Charge @ 10V (nC)	105
Typical Input Capacitance @ Vds (pF)	6550@25V
Maximum Power Dissipation (mW)	250000
Typical Fall Time (ns)	130
Typical Rise Time (ns)	90
Typical Turn-Off Delay Time (ns)	55
Typical Turn-On Delay Time (ns)	12
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.01(Max)
Package Length	10.51(Max)
Package Width	4.65(Max)
PCB changed	3
Tab	Tab
