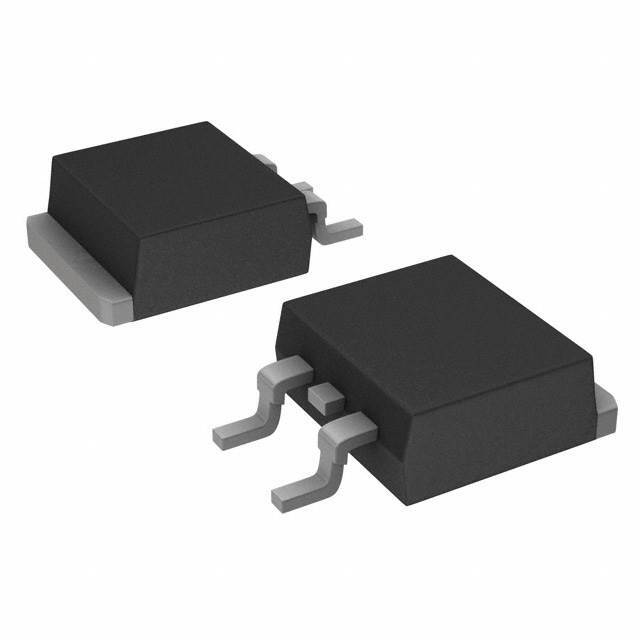

    SUM110N04-2M1P-E3

    SKU: 64427
    Manufacturer: Vishay
    Trans MOSFET N-CH 40V 29A 3-Pin(2+Tab) D2PAK
    1520 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Process Technology TrenchFET
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 40
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 2.5
    Maximum Continuous Drain Current (A) 29
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 2.1@10V
    Typical Gate Charge @ Vgs (nC) 240@10V
    Typical Gate Charge @ 10V (nC) 240
    Typical Input Capacitance @ Vds (pF) 18800@20V
    Maximum Power Dissipation (mW) 3130
    Typical Fall Time (ns) 60
    Typical Rise Time (ns) 62
    Typical Turn-Off Delay Time (ns) 180
    Typical Turn-On Delay Time (ns) 102
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Original Package D2PAK
    Pin Count 3
    Standard Package Method TO-263
    Terminal Form Surface Mount
    Package Height 4.83(Max)
    Package Length 10.41(Max)
    Package Width 9.65(Max)
    PCB changed 2
