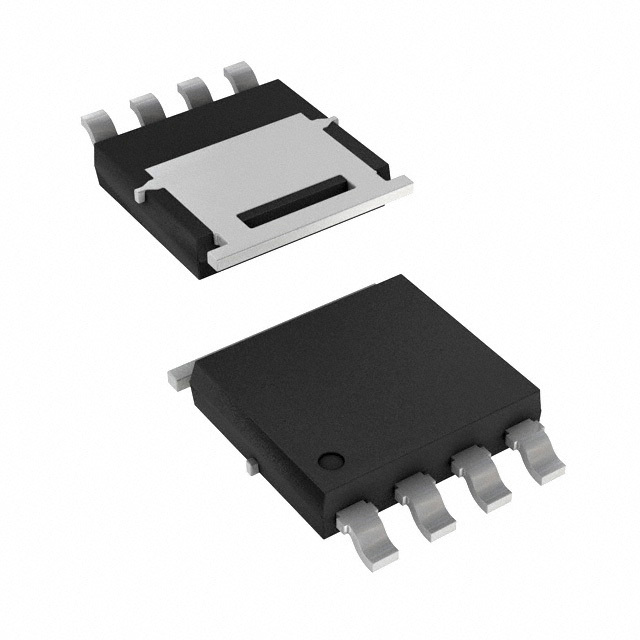

    SQJ465EP-T1-GE3

    SKU: 78298
    Manufacturer: Vishay
    Trans MOSFET P-CH 60V 8A Automotive 5-Pin(4+Tab) PowerPAK SO T/R
    1120 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    Part Status Obsolete
    Automotive Yes
    PPAP Unknown
    Product Category Power MOSFET
    Configuration Single Triple Source
    Process Technology TrenchFET
    Channel Mode Enhancement
    Channel Type P
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 60
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 2.5
    Maximum Continuous Drain Current (A) 8
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 85@10V
    Typical Gate Charge @ Vgs (nC) 26.5@10V
    Typical Gate Charge @ 10V (nC) 26.5
    Typical Input Capacitance @ Vds (pF) 912@30V
    Maximum Power Dissipation (mW) 45000
    Typical Fall Time (ns) 8
    Typical Rise Time (ns) 13
    Typical Turn-Off Delay Time (ns) 36
    Typical Turn-On Delay Time (ns) 11
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Supplier Temperature Grade Automotive
    Packing Method Tape and Reel
    Original Package PowerPAK SO
    Pin Count 5
    Terminal Form Surface Mount
    Package Height 1.07
    Package Length 4.9
    Package Width 4.37
    PCB changed 4
    Tab Tab
