    SQD23N06-31L-GE3

    SKU: 45272
    Manufacturer: Vishay

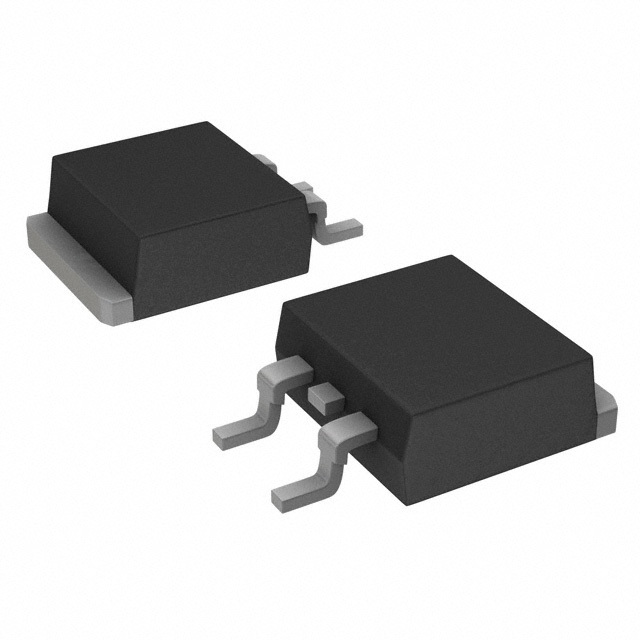

    Trans MOSFET N-CH 60V 23A Automotive 3-Pin(2+Tab) DPAK
    1930 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    Part Status Obsolete
    HTS 8541.29.00.95
    Automotive Yes
    PPAP Unknown
    Product Category Power MOSFET
    Configuration Single
    Process Technology TrenchFET
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 60
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 2.5
    Maximum Continuous Drain Current (A) 23
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 31@10V
    Typical Gate Charge @ Vgs (nC) 16@10V
    Typical Gate Charge @ 10V (nC) 16
    Typical Input Capacitance @ Vds (pF) 674@25V
    Maximum Power Dissipation (mW) 37000
    Typical Fall Time (ns) 3
    Typical Rise Time (ns) 8
    Typical Turn-Off Delay Time (ns) 14
    Typical Turn-On Delay Time (ns) 6
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Supplier Temperature Grade Automotive
    Original Package TO-252AA
    Pin Count 3
    Standard Package Method DPAK
    Terminal Form Surface Mount
    Package Height 2.38(Max)
    Package Length 6.73(Max)
    Package Width 6.22(Max)
    PCB changed 2
    Tab Tab
