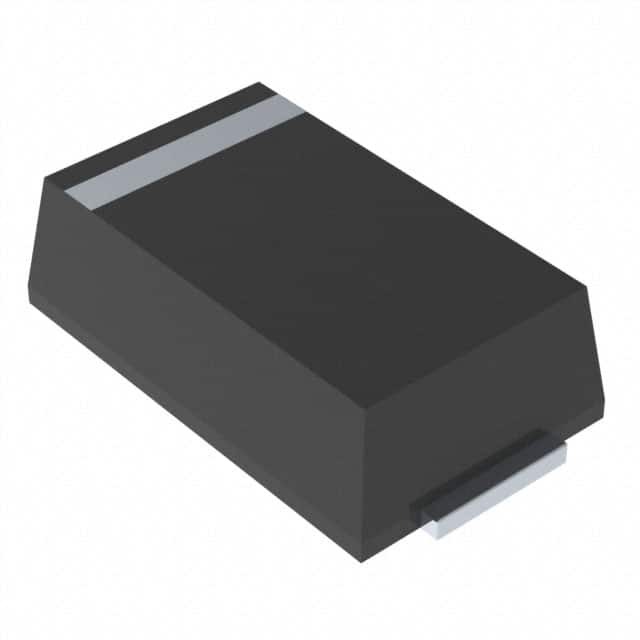

SMP20A-M3/84A

SKU: 80439

Manufacturer: Vishay

TVS Diode Single Uni-Dir 20V 400W 2-Pin SMP T/R

2080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	22.2
Maximum Clamping Voltage (V)	32.4
Maximum Reverse Stand-Off Voltage (V)	20
Maximum Peak Pulse Current (A)	12.3
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	400
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SMP
Pin Count	2
Standard Package Method	DO-220-AA
Terminal Form	Surface Mount
Package Height	1.15(Max)
Package Length	3.61(Max)
Package Width	2.18(Max)
PCB changed	2
