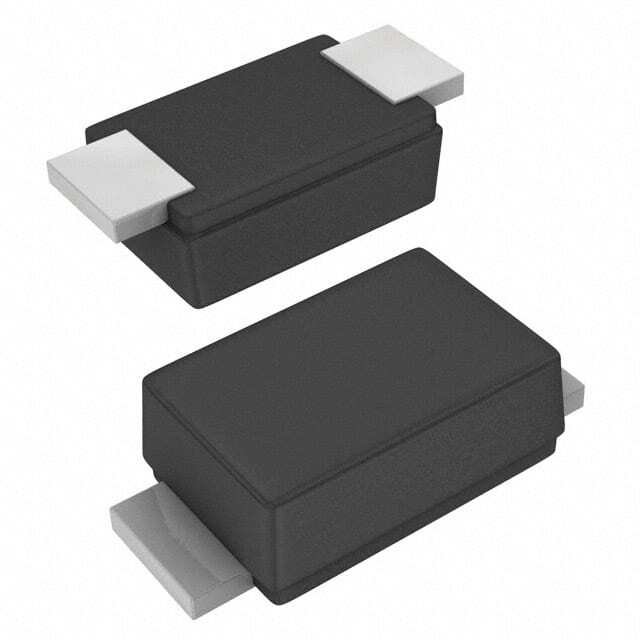

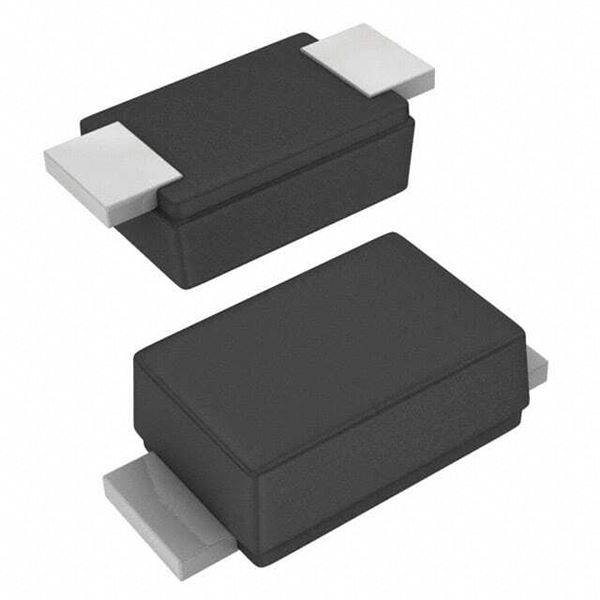

SMF11A-GS08

SKU: 127608

Manufacturer: Vishay

ESD Suppressor Diode TVS Uni-Dir 11V Automotive 2-Pin SMF T/R

850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	Yes
PPAP	Unknown
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	11
Maximum Clamping Voltage (V)	18.2
Maximum Leakage Current (uA)	2.5
Peak Pulse Power Dissipation (W)	1000
Capacitance Value (pF)	460(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SMF
Pin Count	2
Standard Package Method	DO-219-AB
Terminal Form	Surface Mount
Package Height	0.98(Max)
Package Length	2.9(Max)
Package Width	1.9(Max)
PCB changed	2
