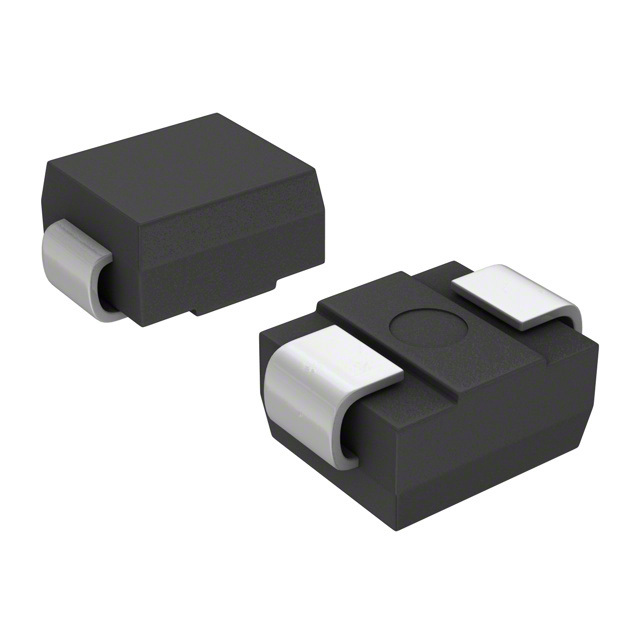

SMBJ8.5CD-M3/H

SKU: 99301

Manufacturer: Vishay

TVS Diode Single Bi-Dir 8.5V 600W 2-Pin SMB T/R

1470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	9.57
Maximum Clamping Voltage (V)	14.3
Maximum Reverse Stand-Off Voltage (V)	8.5
Maximum Peak Pulse Current (A)	42.2
Maximum Reverse Leakage Current (uA)	40
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	SMB
Pin Count	2
Terminal Form	Surface Mount
Package Height	2.24(Max)
Package Length	4.57(Max)
Package Width	3.94(Max)
PCB changed	2
