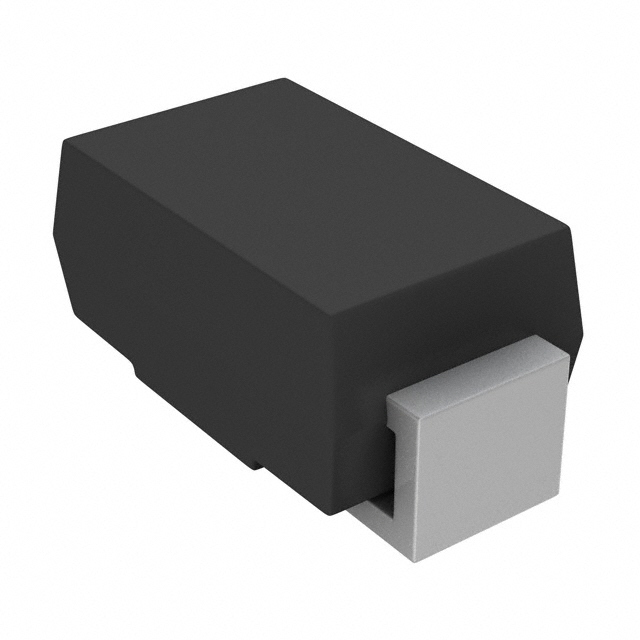

SMAJ15CAHE3/5A

SKU: 35654

Manufacturer: Vishay

TVS Diode Single Bi-Dir 15V 400W Automotive 2-Pin SMA T/R

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	16.7
Maximum Clamping Voltage (V)	24.4
Maximum Reverse Stand-Off Voltage (V)	15
Maximum Peak Pulse Current (A)	16.4
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	400
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-214-AC
Original Package	SMA
Terminal Form	Surface Mount
Package Height	2.09(Max)
Package Length	4.5(Max)
Package Width	2.79(Max)
PCB changed	2
