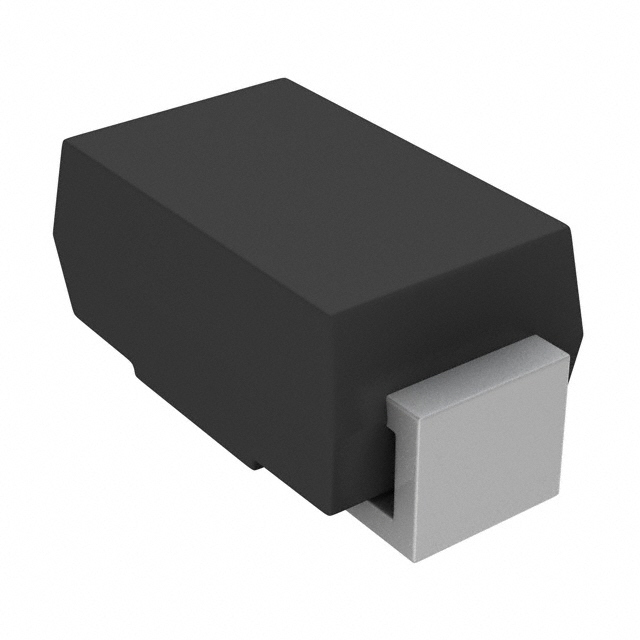

SMA5J9.0-E3/61

SKU: 57003

Manufacturer: Vishay

TVS Diode Single Uni-Dir 9V 500W 2-Pin SMA T/R

3960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	10
Maximum Clamping Voltage (V)	16.9
Maximum Reverse Stand-Off Voltage (V)	9
Maximum Peak Pulse Current (A)	29.6
Maximum Reverse Leakage Current (uA)	5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	500
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SMA
Pin Count	2
Standard Package Method	DO-214-AC
Terminal Form	Surface Mount
Package Height	2.09(Max)
Package Length	4.5(Max)
Package Width	2.79(Max)
PCB changed	2
