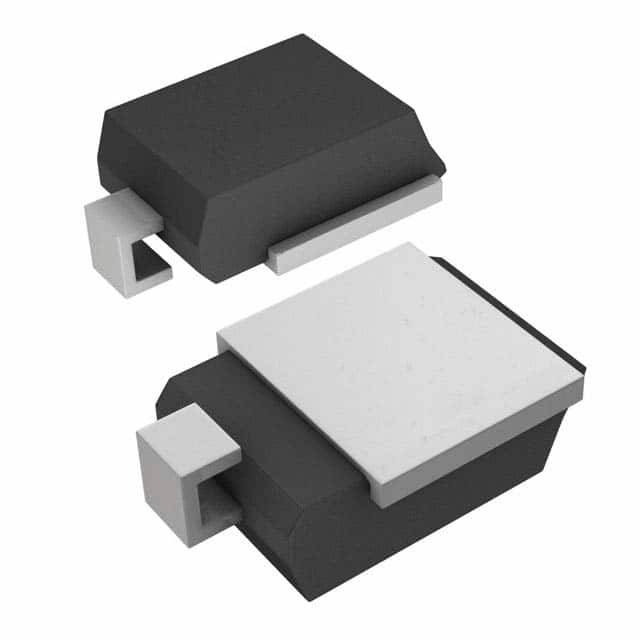

SM6A27THE3/I

SKU: 77954

Manufacturer: Vishay

TVS Diode Single Uni-Dir 22V 4.6KW Automotive 2-Pin(1+Tab) DO-218AC T/R

8170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	Yes
PPAP	Unknown
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	24
Maximum Clamping Voltage (V)	40
Maximum Reverse Stand-Off Voltage (V)	22
Maximum Peak Pulse Current (A)	90
Maximum Reverse Leakage Current (uA)	0.5
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	4600
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	DO-218AC
Pin Count	2
Terminal Form	Surface Mount
Package Height	5(Max) - 0.1
Package Length	13.7(Max)
Package Width	8.7(Max)
PCB changed	1
Tab	Tab
