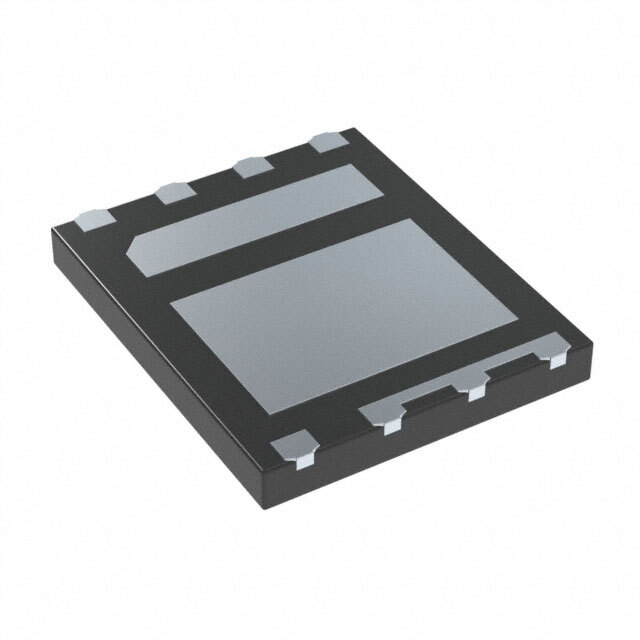

SIZ920DT-T1-GE3

SKU: 42737

Manufacturer: Vishay

Trans MOSFET N-CH 30V 22A/32A 8-Pin PowerPAIR EP T/R

15800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.5@Channel 1
Maximum Continuous Drain Current (A)	22@Channel 1
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	7.1@10V@Channel 1
Typical Gate Charge @ Vgs (nC)	22.3@10V
Typical Gate Charge @ 10V (nC)	22.3@Channel 1
Typical Input Capacitance @ Vds (pF)	1260@15V@Channel 1
Maximum Power Dissipation (mW)	4300@Channel 1
Typical Fall Time (ns)	10
Typical Rise Time (ns)	18
Typical Turn-Off Delay Time (ns)	15
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAIR EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.7(Max)
Package Length	5
Package Width	6
