SIR474DP-T1-GE3

SKU: 63955

Manufacturer: Vishay

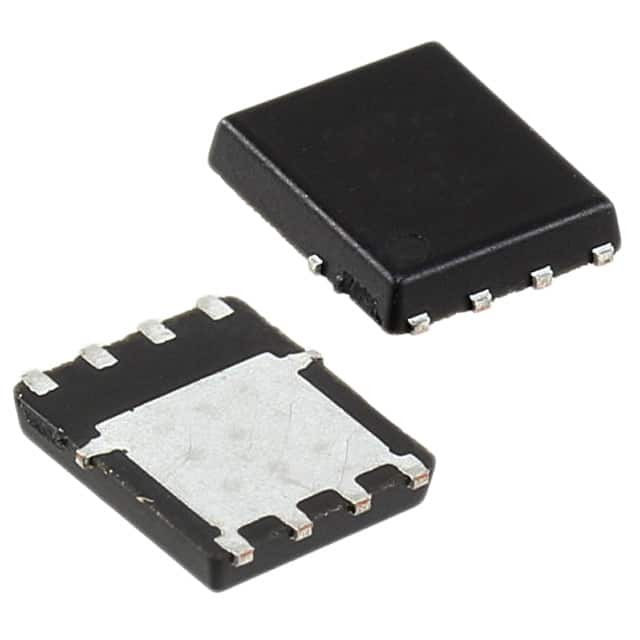

Trans MOSFET N-CH 30V 20A 8-Pin PowerPAK SO EP T/R

39690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.2
Maximum Continuous Drain Current (A)	20
Maximum Drain Source Resistance (mOhm)	9.5@10V
Typical Gate Charge @ Vgs (nC)	18@10V
Typical Gate Charge @ 10V (nC)	18
Typical Gate to Drain Charge (nC)	2.3
Typical Gate to Source Charge (nC)	2.4
Typical Reverse Recovery Charge (nC)	5
Typical Input Capacitance @ Vds (pF)	985@15V
Typical Output Capacitance (pF)	205
Maximum Power Dissipation (mW)	3900
Typical Fall Time (ns)	9
Typical Rise Time (ns)	12
Typical Turn-Off Delay Time (ns)	19
Typical Turn-On Delay Time (ns)	14
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	20
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	15
Maximum Power Dissipation on PCB @ TC=25°C (W)	3.9
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	70
Typical Diode Forward Voltage (V)	0.76
Typical Gate Plateau Voltage (V)	2.7
Typical Reverse Recovery Time (ns)	14
Maximum Diode Forward Voltage (V)	1.1
Minimum Gate Resistance (Ohm)	0.3
Maximum Gate Resistance (Ohm)	2.6
Original Package	PowerPAK SO EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	4.9
Package Width	5.89
PCB changed	8
