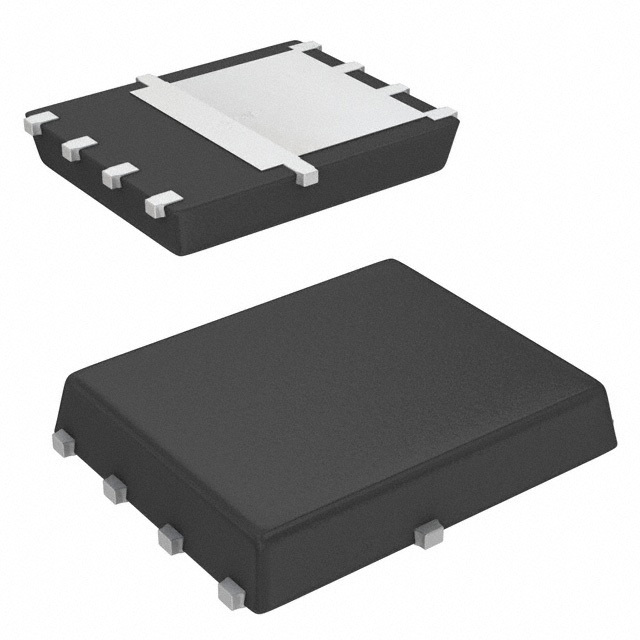

    SIR414DP-T1-GE3

    SKU: 99206
    Manufacturer: Vishay
    Trans MOSFET N-CH 40V 33A 8-Pin PowerPAK SO EP T/R
    17620 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status NRND
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single Quad Drain Triple Source
    Process Technology TrenchFET
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 40
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 2.5
    Operating Junction Temperature (°C) -55 to 150
    Maximum Continuous Drain Current (A) 33
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 2.8@10V
    Typical Gate Charge @ Vgs (nC) 78@10V
    Typical Gate Charge @ 10V (nC) 78
    Typical Gate to Drain Charge (nC) 11
    Typical Gate to Source Charge (nC) 13
    Typical Reverse Recovery Charge (nC) 48
    Typical Input Capacitance @ Vds (pF) 4750@20V
    Typical Reverse Transfer Capacitance @ Vds (pF) 275@20V
    Minimum Gate Threshold Voltage (V) 1
    Typical Output Capacitance (pF) 610
    Maximum Power Dissipation (mW) 5400
    Typical Fall Time (ns) 13
    Typical Rise Time (ns) 22
    Typical Turn-Off Delay Time (ns) 42
    Typical Turn-On Delay Time (ns) 33
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Maximum Power Dissipation on PCB @ TC=25°C (W) 5.4
    Maximum Pulsed Drain Current @ TC=25°C (A) 70
    Maximum Junction Ambient Thermal Resistance on PCB (°C/W) 65
    Typical Diode Forward Voltage (V) 0.75
    Typical Gate Plateau Voltage (V) 2.5
    Typical Reverse Recovery Time (ns) 40
    Maximum Diode Forward Voltage (V) 1.1
    Minimum Gate Resistance (Ohm) 0.2
    Maximum Gate Resistance (Ohm) 1.4
    Maximum Positive Gate Source Voltage (V) 20
    Maximum Continuous Drain Current on PCB @ TC=25°C (A) 33
    Original Package PowerPAK SO EP
    Pin Count 8
    Standard Package Method SO
    Terminal Form Surface Mount
    Package Height 1.07(Max)
    Package Length 4.9
    Package Width 5.89
    PCB changed 8
