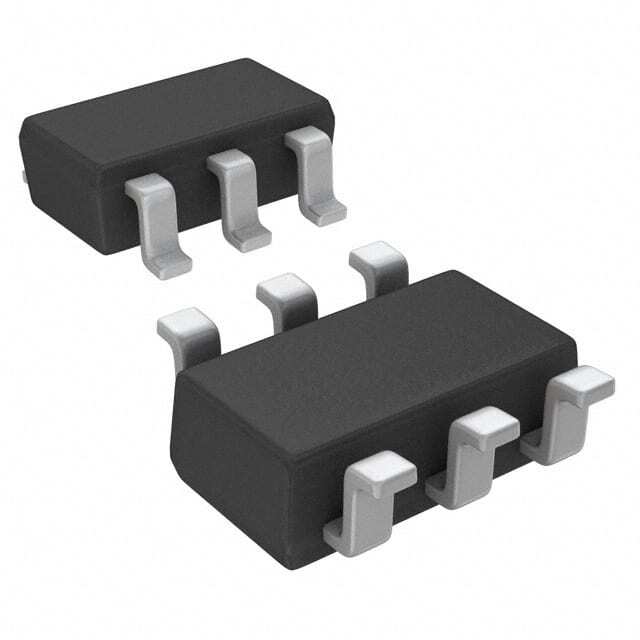

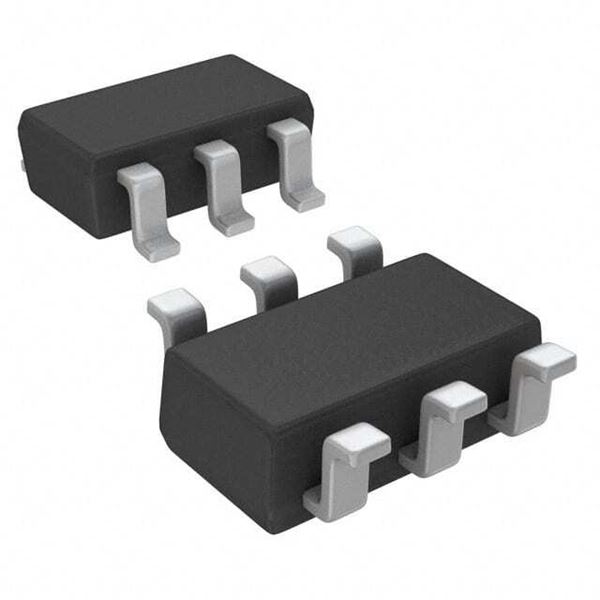

SIP4280ADT-3-T1-E3

SKU: 115826

Manufacturer: Vishay

Power Switch Hi Side 1-OUT 2.3A 0.16Ohm 6-Pin SOT-23 T/R

4150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	High Side
Number of Outputs	1
Minimum Input Voltage (V)	1.5
Maximum Input Voltage (V)	5.5
Output Voltage Range (V)	-0.3 to 6.3
Operating Supply Voltage Range (V)	1.5 to 5.5
Minimum Output Current (A)	2.3(Max)
Switch On Resistance (Ohm)	0.16
Maximum Power Dissipation (mW)	440
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.25(Max)
Package Length	3.1(Max)
Package Width	1.7(Max)
PCB changed	6
