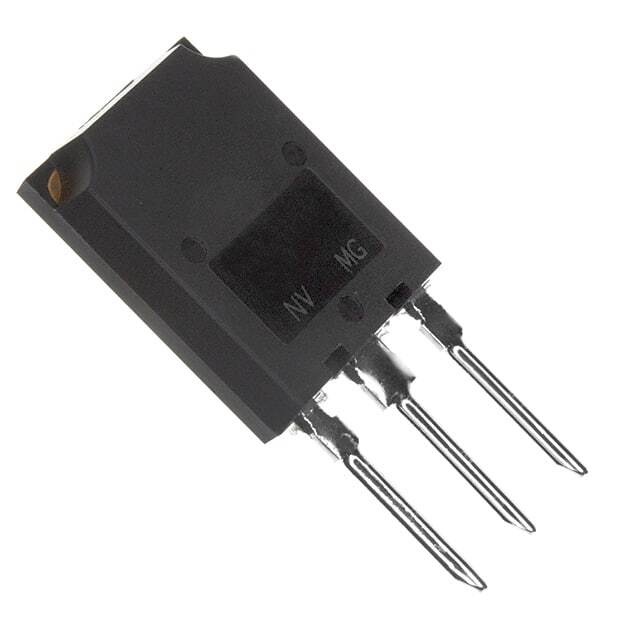

SIHS90N65E-E3

SKU: 35582

Manufacturer: Vishay

Trans MOSFET N-CH 650V 87A 3-Pin(3+Tab) Super-247 T/R

3490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	650
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	87
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	29@10V
Typical Gate Charge @ Vgs (nC)	394@10V
Typical Gate Charge @ 10V (nC)	394
Typical Input Capacitance @ Vds (pF)	11826@100V
Maximum Power Dissipation (mW)	625000
Typical Fall Time (ns)	297
Typical Rise Time (ns)	152
Typical Turn-Off Delay Time (ns)	323
Typical Turn-On Delay Time (ns)	85
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Super-247
Pin Count	3
Terminal Form	Through Hole
PCB changed	3
