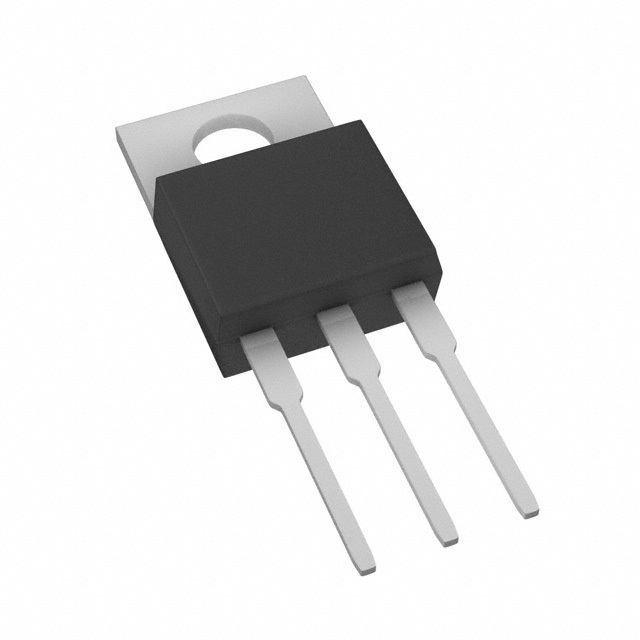

SIHP21N60EF-GE3

SKU: 35583

Manufacturer: Vishay

Trans MOSFET N-CH 600V 21A 3-Pin(3+Tab) TO-220AB

4030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	21
Maximum Gate Source Leakage Current (nA)	1000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	176@10V
Typical Gate Charge @ Vgs (nC)	56@10V
Typical Gate Charge @ 10V (nC)	56
Typical Input Capacitance @ Vds (pF)	2030@100V
Maximum Power Dissipation (mW)	227000
Typical Fall Time (ns)	27
Typical Rise Time (ns)	31
Typical Turn-Off Delay Time (ns)	59
Typical Turn-On Delay Time (ns)	21
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.01(Max)
Package Length	10.51(Max)
Package Width	4.65(Max)
PCB changed	3
Tab	Tab
