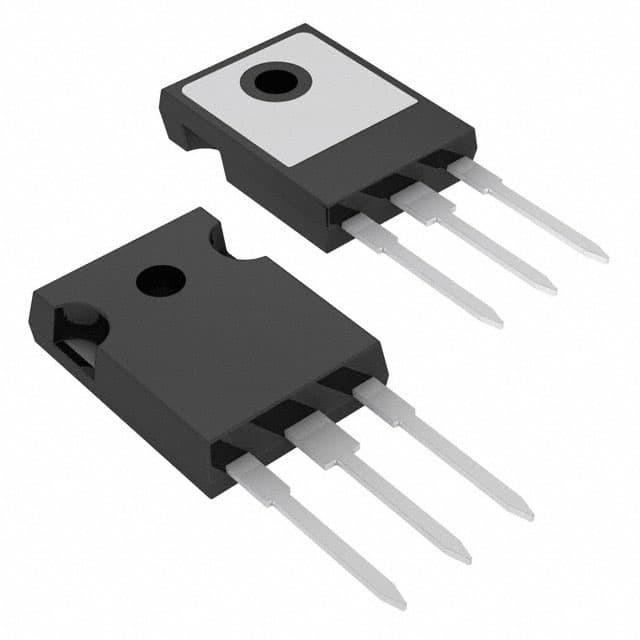

SIHG73N60E-GE3

SKU: 148829

Manufacturer: Vishay

SIHG73N60E-GE3 Vishay MOSFETs Transistor N-CH 600V 73A 3-Pin(3+Tab) TO-247AC - Arrow.com

7720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	73
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	39@10V
Typical Gate Charge @ Vgs (nC)	241@10V
Typical Gate Charge @ 10V (nC)	241
Typical Input Capacitance @ Vds (pF)	7700@100V
Maximum Power Dissipation (mW)	520000
Typical Fall Time (ns)	120
Typical Rise Time (ns)	105
Typical Turn-Off Delay Time (ns)	290
Typical Turn-On Delay Time (ns)	63
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	TO-247-3
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	73
Typical Gate Threshold Voltage (V)	10
Pin Count	3
Standard Package Method	TO-247
Original Package	TO-247AC
Terminal Form	Through Hole
Package Height	20.7(Max)
Package Length	15.87(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
