SIHG22N50D-GE3

SKU: 130011

Manufacturer: Vishay

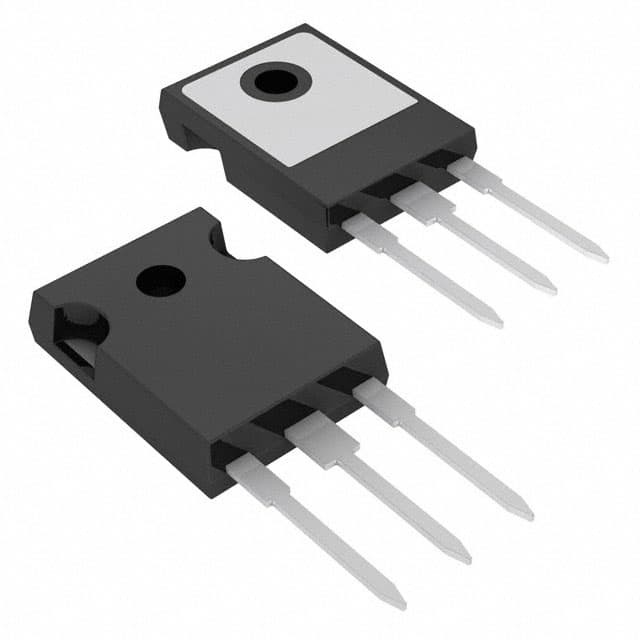

Trans MOSFET N-CH 500V 22A 3-Pin(3+Tab) TO-247AC

2670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	22
Maximum Drain Source Resistance (mOhm)	230@10V
Typical Gate Charge @ Vgs (nC)	49@10V
Typical Gate Charge @ 10V (nC)	49
Typical Input Capacitance @ Vds (pF)	1938@100V
Maximum Power Dissipation (mW)	312000
Typical Fall Time (ns)	40
Typical Rise Time (ns)	42
Typical Turn-Off Delay Time (ns)	47
Typical Turn-On Delay Time (ns)	21
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-247AC
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.82(Max)
Package Length	15.87(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
