SIHF28N60EF-GE3

SKU: 66356

Manufacturer: Vishay

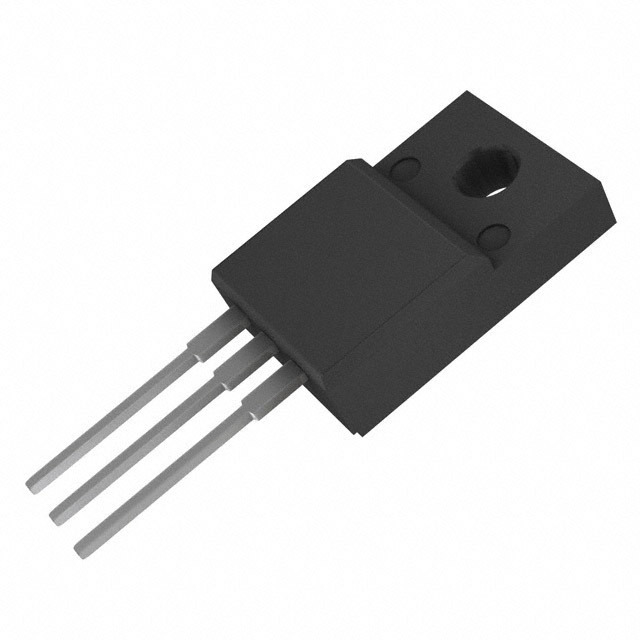

Trans MOSFET N-CH 600V 28A 3-Pin(3+Tab) TO-220 Full-Pak

1330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	28
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	123@10V
Typical Gate Charge @ Vgs (nC)	80@10V
Typical Gate Charge @ 10V (nC)	80
Typical Input Capacitance @ Vds (pF)	2714@100V
Maximum Power Dissipation (mW)	39000
Typical Fall Time (ns)	39
Typical Rise Time (ns)	40
Typical Turn-Off Delay Time (ns)	82
Typical Turn-On Delay Time (ns)	24
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-220 Full-Pak
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	16.12(Max)
Package Length	10.63(Max)
Package Width	4.83(Max)
PCB changed	3
Tab	Tab
