SIHD180N60E-GE3

SKU: 106249

Manufacturer: Vishay

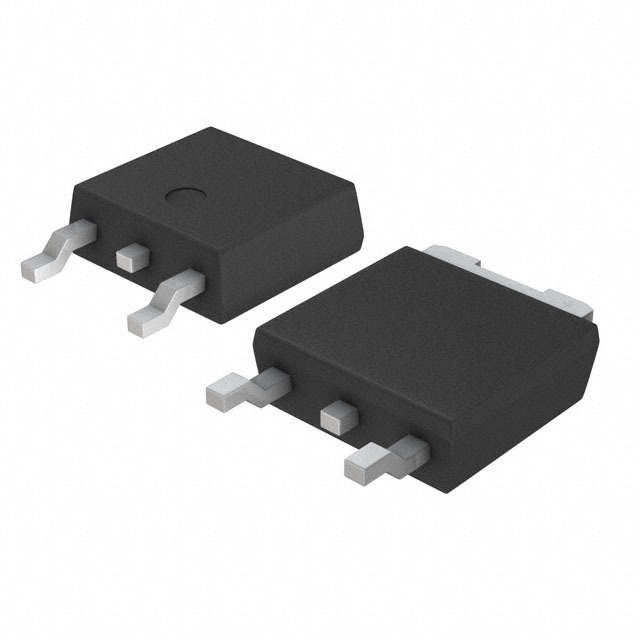

Trans MOSFET N-CH 600V 19A 3-Pin(2+Tab ) DPAK

830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	19
Maximum Drain Source Resistance (mOhm)	195@10V
Typical Gate Charge @ Vgs (nC)	21@10V
Typical Gate Charge @ 10V (nC)	21
Typical Input Capacitance @ Vds (pF)	1080@100V
Maximum Power Dissipation (mW)	156000
Typical Fall Time (ns)	9
Typical Rise Time (ns)	22
Typical Turn-Off Delay Time (ns)	23
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	DPAK
Pin Count	3
Terminal Form	Surface Mount
PCB changed	2
