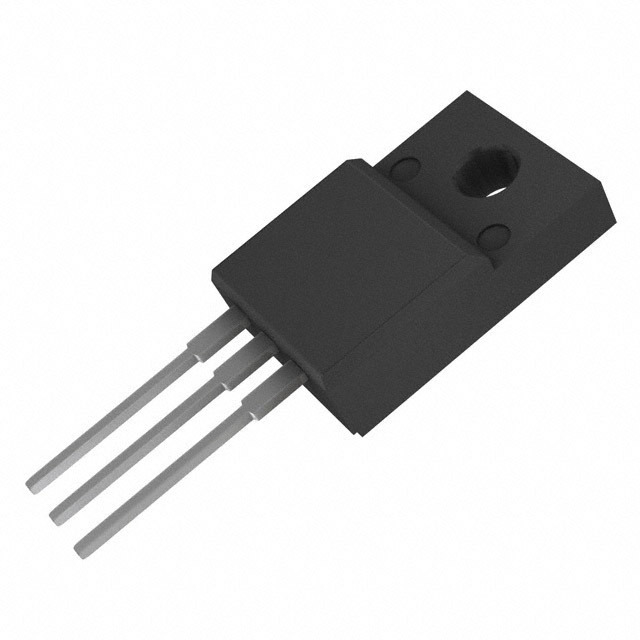

SIHA22N60AEL-GE3

SKU: 14360

Manufacturer: Vishay

Trans MOSFET N-CH 600V 21A 3-Pin(3+Tab) TO-220FP

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	21
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	180@10V
Typical Gate Charge @ Vgs (nC)	41@10V
Typical Gate Charge @ 10V (nC)	41
Typical Input Capacitance @ Vds (pF)	1757@100V
Maximum Power Dissipation (mW)	35000
Typical Fall Time (ns)	28
Typical Rise Time (ns)	24
Typical Turn-Off Delay Time (ns)	86
Typical Turn-On Delay Time (ns)	27
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-220FP
Pin Count	3
Terminal Form	Through Hole
Package Height	15.3(Max)
Package Length	10.3(Max)
Package Width	4.7(Max)
PCB changed	3
