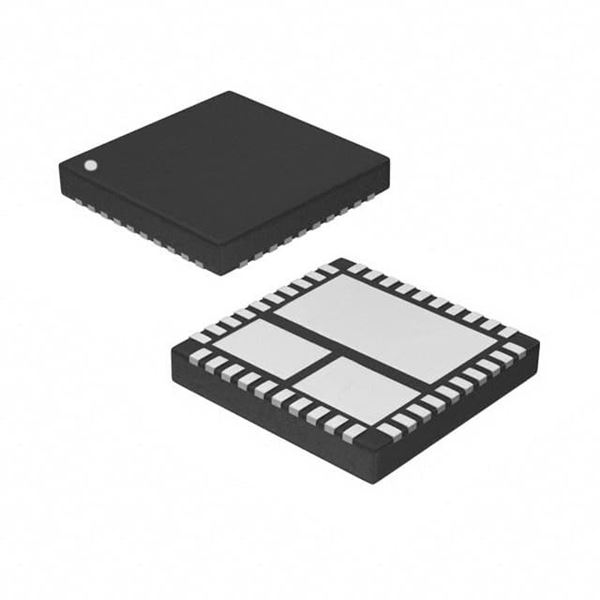

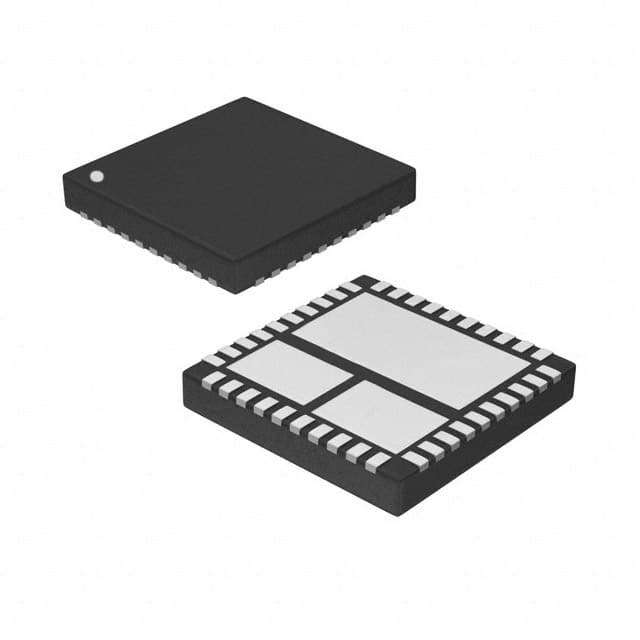

SIC780CD-T1-GE3

SKU: 85060

Manufacturer: Vishay

Driver 50A 1-OUT High Side/Low Side Inv/Non-Inv 40-Pin PowerPAK MLP66 T/R

690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Driver Type	High Side
Driver Configuration	Inverting
Number of Drivers	1
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	1
Maximum Operating Frequency (kHz)	1000
Maximum Propagation Delay Time (ns)	20(Typ)
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	0.3(Typ)
Peak Output Current (A)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Latch-Up Proof	No
Original Package	PowerPAK MLP66
Pin Count	40
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	6
Package Width	6
PCB changed	40
