SIC534CD-T1-GE3

SKU: 63948

Manufacturer: Vishay

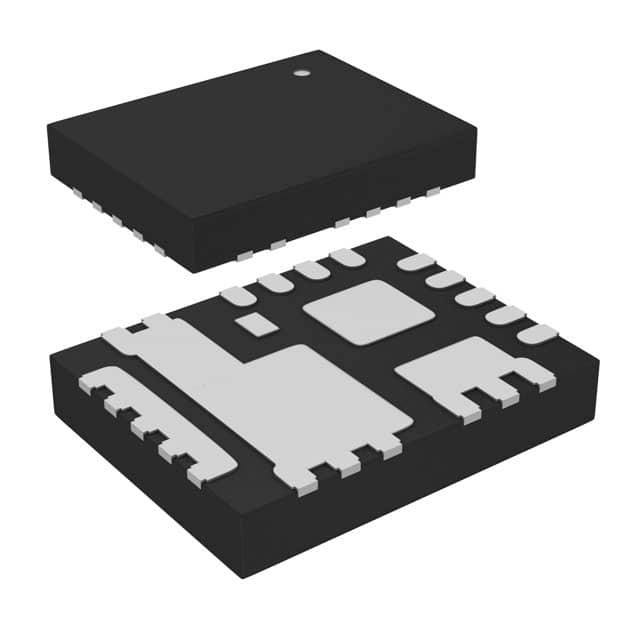

Driver 1-OUT High Side/Low Side 22-Pin PowerPAK MLP EP T/R

2800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High Side
Number of Drivers	1
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	1
Maximum Operating Frequency (kHz)	2000
Maximum Propagation Delay Time (ns)	20(Typ)
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	15
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Latch-Up Proof	No
Packing Method	Tape and Reel
Original Package	PowerPAK MLP EP
Pin Count	22
Terminal Form	Surface Mount
Package Height	0.75
Package Length	4.5
Package Width	3.5
