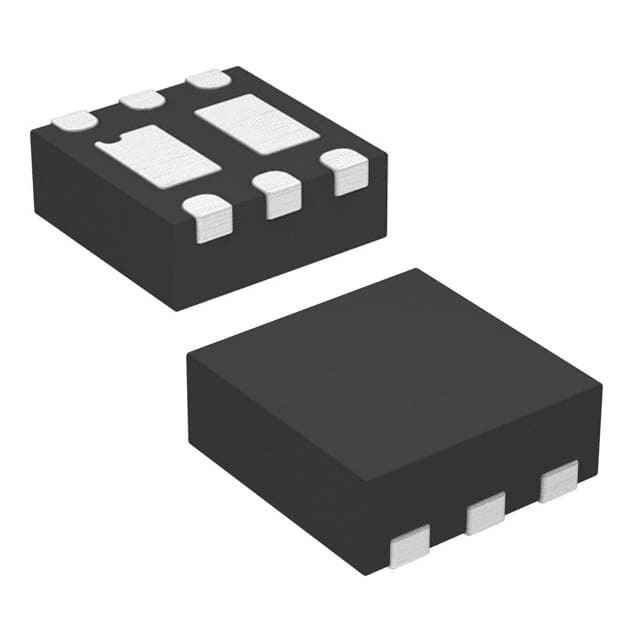

SIA519EDJ-T1-GE3

SKU: 85058

Manufacturer: Vishay

Trans MOSFET N/P-CH 20V 4.5A/3.7A 6-Pin PowerPAK SC-70 T/R

710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	1.3@P Channel
Maximum Continuous Drain Current (A)	3.7@P Channel
Maximum Gate Source Leakage Current (nA)	8000@P Channel
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	40@4.5V@N Channel
Typical Gate Charge @ Vgs (nC)	7.7@10V
Typical Gate Charge @ 10V (nC)	7.7@N Channel
Typical Input Capacitance @ Vds (pF)	350@10V@N Channel
Maximum Power Dissipation (mW)	1900
Typical Fall Time (ns)	16@N Channel
Typical Rise Time (ns)	12@N Channel
Typical Turn-Off Delay Time (ns)	25@P Channel
Typical Turn-On Delay Time (ns)	20@P Channel
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAK SC-70
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.75
Package Length	2.05
Package Width	2.05
