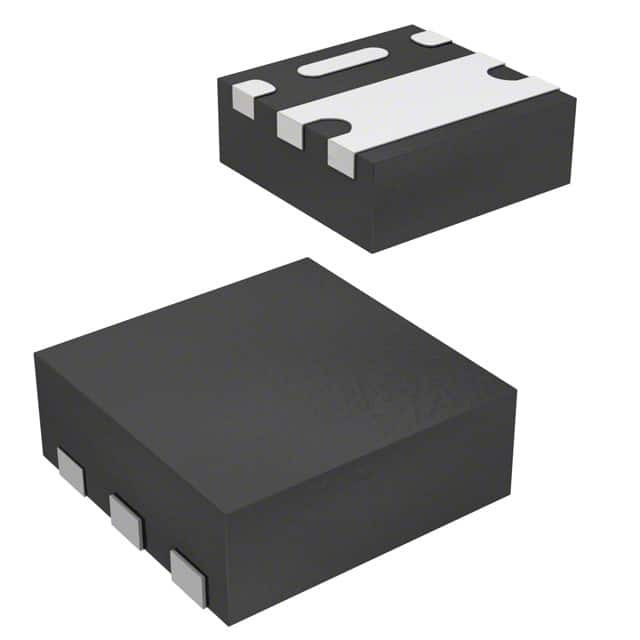

SIA462DJ-T1-GE3

SKU: 59445

Manufacturer: Vishay

Trans MOSFET N-CH 30V 12A 6-Pin PowerPAK SC-70 T/R

Request Free Samples

4420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.4
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	12
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	18@10V
Typical Gate Charge @ Vgs (nC)	11@10V
Typical Gate Charge @ 10V (nC)	11
Typical Gate to Drain Charge (nC)	1.6
Typical Gate to Source Charge (nC)	1.7
Typical Reverse Recovery Charge (nC)	11
Typical Input Capacitance @ Vds (pF)	570@15V
Typical Reverse Transfer Capacitance @ Vds (pF)	52@15V
Minimum Gate Threshold Voltage (V)	1.2
Typical Output Capacitance (pF)	126
Maximum Power Dissipation (mW)	3500
Typical Fall Time (ns)	10
Typical Rise Time (ns)	15
Typical Turn-Off Delay Time (ns)	15
Typical Turn-On Delay Time (ns)	12
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Power Dissipation on PCB @ TC=25°C (W)	3.5
Maximum Pulsed Drain Current @ TC=25°C (A)	40
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	80
Typical Diode Forward Voltage (V)	0.85
Typical Gate Plateau Voltage (V)	2.8
Typical Reverse Recovery Time (ns)	20
Maximum Diode Forward Voltage (V)	1.2
Minimum Gate Resistance (Ohm)	0.2
Maximum Gate Resistance (Ohm)	2
Maximum Positive Gate Source Voltage (V)	20
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	12
Original Package	PowerPAK SC-70
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.75
Package Length	2.05
Package Width	2.05
PCB changed	6
