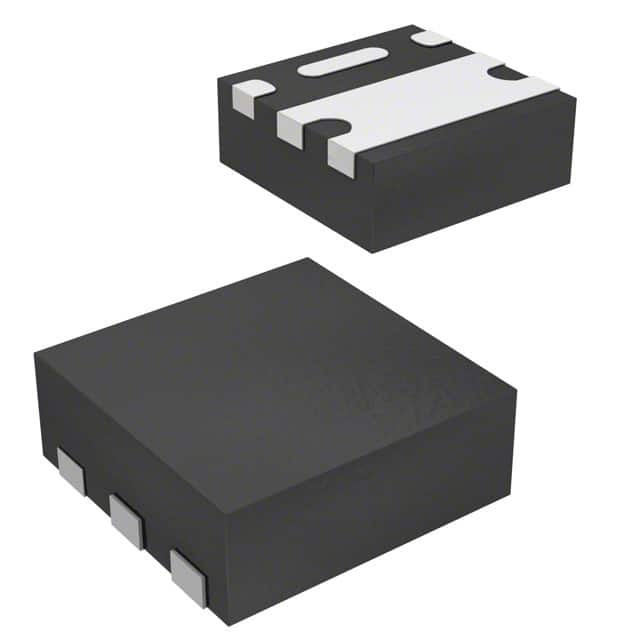

SIA408DJ-T1-GE3

SKU: 127470

Manufacturer: Vishay

Trans MOSFET N-CH 30V 4.5A 6-Pin PowerPAK SC-70 T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	1.6
Maximum Continuous Drain Current (A)	4.5
Maximum Drain Source Resistance (mOhm)	36@10V
Typical Gate Charge @ Vgs (nC)	7@4.5V
Typical Gate Charge @ 10V (nC)	16
Typical Gate to Drain Charge (nC)	1.7
Typical Gate to Source Charge (nC)	2
Typical Reverse Recovery Charge (nC)	15
Typical Input Capacitance @ Vds (pF)	830@15V
Typical Output Capacitance (pF)	130
Maximum Power Dissipation (mW)	3400
Typical Fall Time (ns)	15
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	35
Typical Turn-On Delay Time (ns)	10
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAK SC-70
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.75
Package Length	2.05
Package Width	2.05
PCB changed	6
