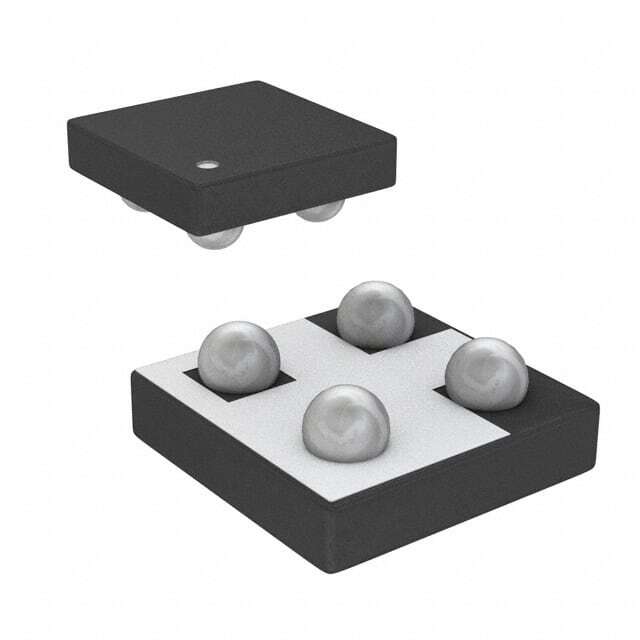

SI8800EDB-T2-E1

SKU: 85053

Manufacturer: Vishay

Trans MOSFET N-CH 20V 2.8A 4-Pin Micro Foot T/R

394020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	2.8
Maximum Drain Source Resistance (mOhm)	80@4.5V
Typical Gate Charge @ Vgs (nC)	5.5@8V
Maximum Power Dissipation (mW)	900
Typical Fall Time (ns)	350
Typical Rise Time (ns)	85
Typical Turn-Off Delay Time (ns)	900
Typical Turn-On Delay Time (ns)	65
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Micro Foot
Pin Count	4
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.2
Package Length	0.8
Package Width	0.8
