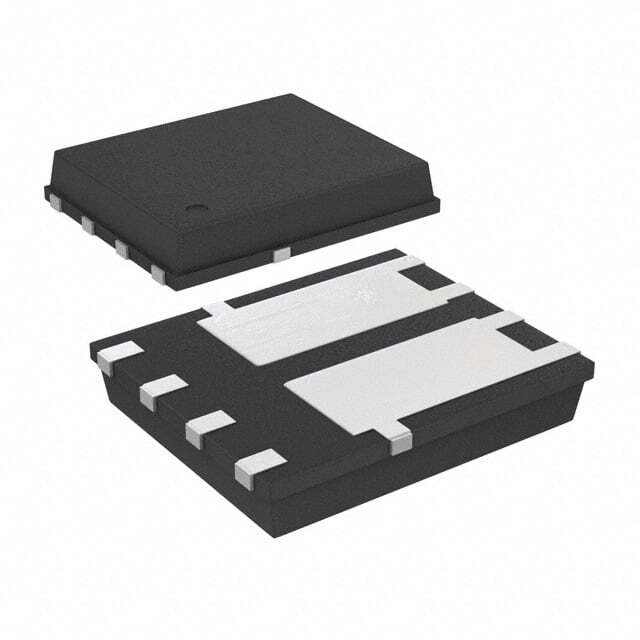

    SI7980DP-T1-GE3

    SKU: 35561
    Manufacturer: Vishay
    Trans MOSFET N-CH 20V 8.8A/11A 8-Pin PowerPAK SO T/R
    2350 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Dual
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 2
    Maximum Drain Source Voltage (V) 20
    Maximum Gate Source Voltage (V) ±16
    Maximum Continuous Drain Current (A) 11@Channel 2
    Maximum Drain Source Resistance (mOhm) 15@10V@Channel 2
    Typical Gate Charge @ Vgs (nC) 10.3@4.5V@Channel 2
    Typical Gate Charge @ 10V (nC) 22.5@Channel 2
    Typical Input Capacitance @ Vds (pF) 1370@10V@Channel 2
    Maximum Power Dissipation (mW) 3400@Channel 2
    Typical Fall Time (ns) 10@Channel 2
    Typical Rise Time (ns) 18
    Typical Turn-Off Delay Time (ns) 25@Channel 2
    Typical Turn-On Delay Time (ns) 18@Channel 2
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package PowerPAK SO
    Pin Count 8
    Terminal Form Surface Mount
    Package Height 1.07(Max)
    Package Length 4.9
    Package Width 5.89
    PCB changed 8
