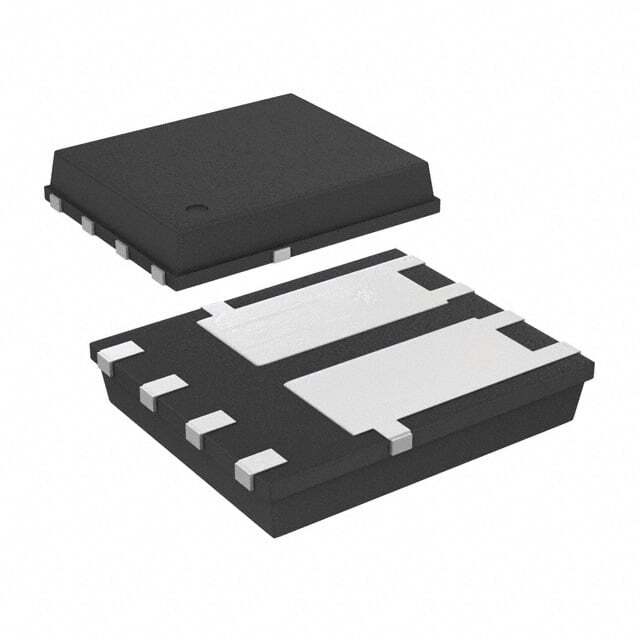

SI7942DP-T1-E3

SKU: 113352

Manufacturer: Vishay

Trans MOSFET N-CH 100V 3.8A 8-Pin PowerPAK SO T/R

3700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	3.8
Maximum Drain Source Resistance (mOhm)	49@10V
Typical Gate Charge @ Vgs (nC)	16@10V
Typical Gate Charge @ 10V (nC)	16
Maximum Power Dissipation (mW)	1400
Typical Fall Time (ns)	20
Typical Rise Time (ns)	15
Typical Turn-Off Delay Time (ns)	35
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAK SO
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	4.9
Package Width	5.89
PCB changed	8
