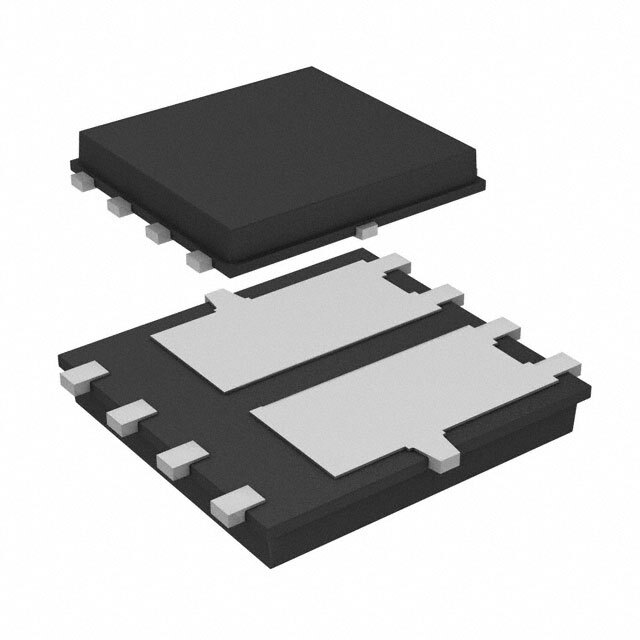

SI7900AEDN-T1-E3

SKU: 70942

Manufacturer: Vishay

Trans MOSFET N-CH 20V 6A 8-Pin PowerPAK 1212 T/R

56540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual Common Quad Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	6
Maximum Drain Source Resistance (mOhm)	26@4.5V
Typical Gate Charge @ Vgs (nC)	10.5@4.5V
Maximum Power Dissipation (mW)	1500
Typical Fall Time (ns)	4200
Typical Rise Time (ns)	1300
Typical Turn-Off Delay Time (ns)	8600
Typical Turn-On Delay Time (ns)	850
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAK 1212
Pin Count	8
Standard Package Method	PowerPAK 1212
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	3.05
Package Width	3.05
PCB changed	8
