    SI7790DP-T1-GE3

    SKU: 85039
    Manufacturer: Vishay

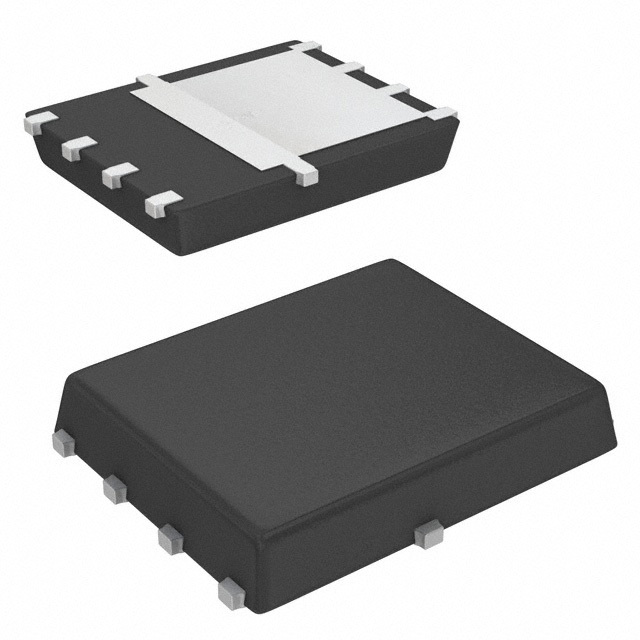

    Trans MOSFET N-CH 40V 25.3A 8-Pin PowerPAK SO T/R
    70 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single Quad Drain Triple Source
    Process Technology TrenchFET
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 40
    Maximum Gate Source Voltage (V) ±25
    Maximum Gate Threshold Voltage (V) 2.5
    Maximum Continuous Drain Current (A) 25.3
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 4.5@10V
    Typical Gate Charge @ Vgs (nC) 62@10V
    Typical Gate Charge @ 10V (nC) 62
    Typical Input Capacitance @ Vds (pF) 4200@20V
    Maximum Power Dissipation (mW) 5200
    Typical Fall Time (ns) 28
    Typical Rise Time (ns) 34
    Typical Turn-Off Delay Time (ns) 45
    Typical Turn-On Delay Time (ns) 42
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package PowerPAK SO
    Pin Count 8
    Terminal Form Surface Mount
    Package Height 1.07(Max)
    Package Length 4.9
    Package Width 5.89
    PCB changed 8
