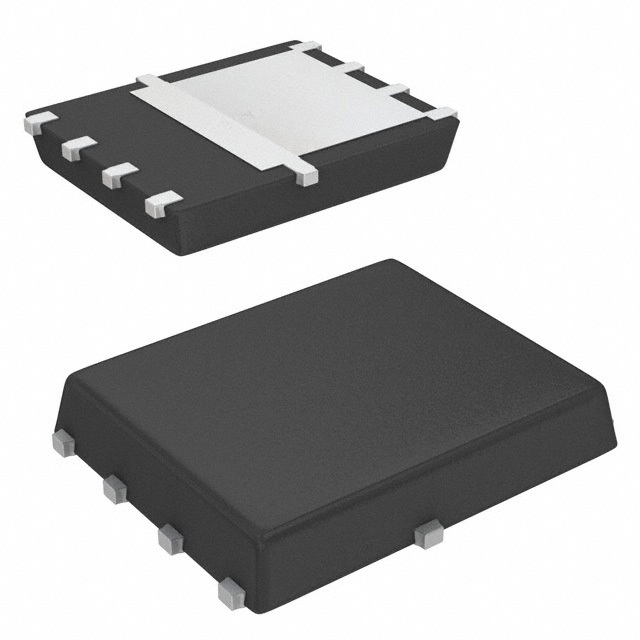

SI7489DP-T1-GE3

SKU: 137123

Manufacturer: Vishay

Trans MOSFET P-CH 100V 28A 8-Pin PowerPAK SO T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	28
Maximum Drain Source Resistance (mOhm)	41@10V
Typical Gate Charge @ Vgs (nC)	54@4.5V
Typical Gate Charge @ 10V (nC)	106
Typical Input Capacitance @ Vds (pF)	4600@50V
Maximum Power Dissipation (mW)	5200
Typical Fall Time (ns)	100
Typical Rise Time (ns)	160
Typical Turn-Off Delay Time (ns)	110
Typical Turn-On Delay Time (ns)	42
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAK SO
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	4.9
Package Width	5.89
PCB changed	8
