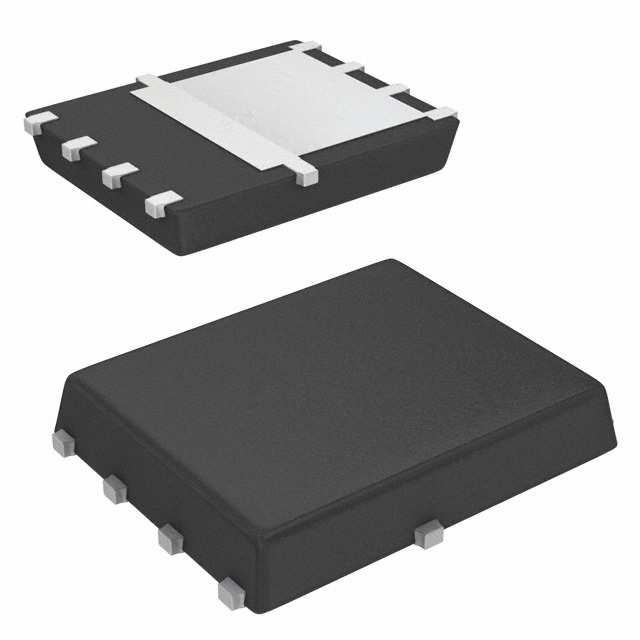

    SI7464DP-T1-GE3

    SKU: 70936
    Manufacturer: Vishay
    SI7464DP-T1-GE3 Vishay MOSFETs Transistor N-CH 200V 1.8A 8-Pin PowerPAK SO T/R - Arrow.com
    3410 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single Quad Drain Triple Source
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 200
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 20
    Maximum Continuous Drain Current (A) 1.8
    Maximum Drain Source Resistance (mOhm) 240@10V
    Typical Gate Charge @ Vgs (nC) 12@10V
    Typical Gate Charge @ 10V (nC) 12
    Maximum Power Dissipation (mW) 4200
    Typical Fall Time (ns) 15
    Typical Rise Time (ns) 12
    Typical Turn-Off Delay Time (ns) 15
    Typical Turn-On Delay Time (ns) 10
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Maximum Continuous Drain Current on PCB @ TC=25°C (A) 1.8 (Ta)
    Typical Gate Threshold Voltage (V) 10
    Original Package PowerPAK SO
    Pin Count 8
    Terminal Form Surface Mount
    Package Height 1.07(Max)
    Package Length 4.9
    Package Width 5.89
    PCB changed 8
