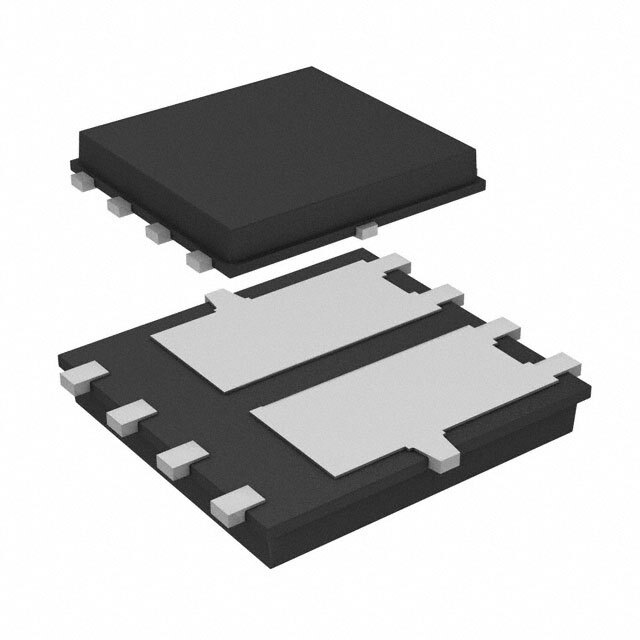

SI7228DN-T1-GE3

SKU: 134636

Manufacturer: Vishay

Trans MOSFET N-CH 30V 8.8A 8-Pin PowerPAK 1212 T/R

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.5
Maximum Continuous Drain Current (A)	8.8
Maximum Drain Source Resistance (mOhm)	20@10V
Typical Gate Charge @ Vgs (nC)	8.5@10V
Typical Gate Charge @ 10V (nC)	8.5
Typical Gate to Drain Charge (nC)	1.3
Typical Gate to Source Charge (nC)	1.5
Typical Reverse Recovery Charge (nC)	16
Typical Input Capacitance @ Vds (pF)	480@15V
Typical Output Capacitance (pF)	115
Maximum Power Dissipation (mW)	2600
Typical Fall Time (ns)	10
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	12
Typical Turn-On Delay Time (ns)	13
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAK 1212
Pin Count	8
Standard Package Method	PowerPAK 1212
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	3.05
Package Width	3.05
PCB changed	8
