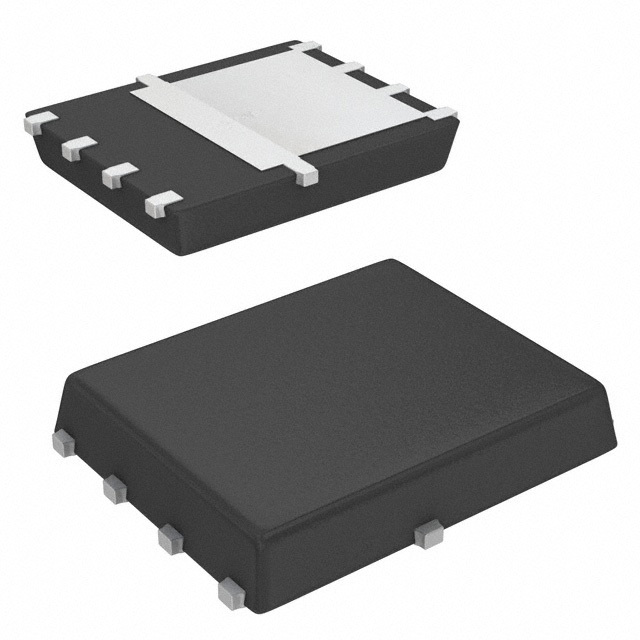

SI7178DP-T1-GE3

SKU: 155934

Manufacturer: Vishay

Trans MOSFET N-CH 100V 60A 8-Pin PowerPAK SO T/R

147460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	60
Maximum Drain Source Resistance (mOhm)	14@10V
Typical Gate Charge @ Vgs (nC)	47.5@10V
Typical Gate Charge @ 10V (nC)	47.5
Typical Input Capacitance @ Vds (pF)	2870@50V
Maximum Power Dissipation (mW)	6250
Typical Fall Time (ns)	11
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	27
Typical Turn-On Delay Time (ns)	21
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAK SO
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	4.9
Package Width	5.89
PCB changed	8
