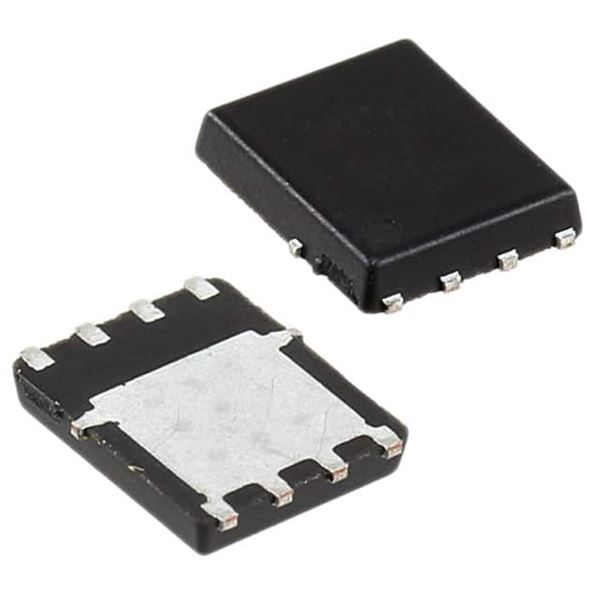

SI7148DP-T1-GE3

SKU: 113338

Manufacturer: Vishay

SI7148DP-T1-GE3 Vishay MOSFETs Transistor N-CH 75V 28A 8-Pin PowerPAK SO T/R - Arrow.com

1280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	75
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.5
Maximum Continuous Drain Current (A)	28
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	11@10V
Typical Gate Charge @ Vgs (nC)	68@10V
Typical Gate Charge @ 10V (nC)	68
Typical Input Capacitance @ Vds (pF)	2900@35V
Maximum Power Dissipation (mW)	5400
Typical Fall Time (ns)	100
Typical Rise Time (ns)	255
Typical Turn-Off Delay Time (ns)	35
Typical Turn-On Delay Time (ns)	33
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	28
Typical Gate Threshold Voltage (V)	10
Original Package	PowerPAK SO
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	4.9
Package Width	5.89
PCB changed	8
