SI7108DN-T1-E3

SKU: 85033

Manufacturer: Vishay

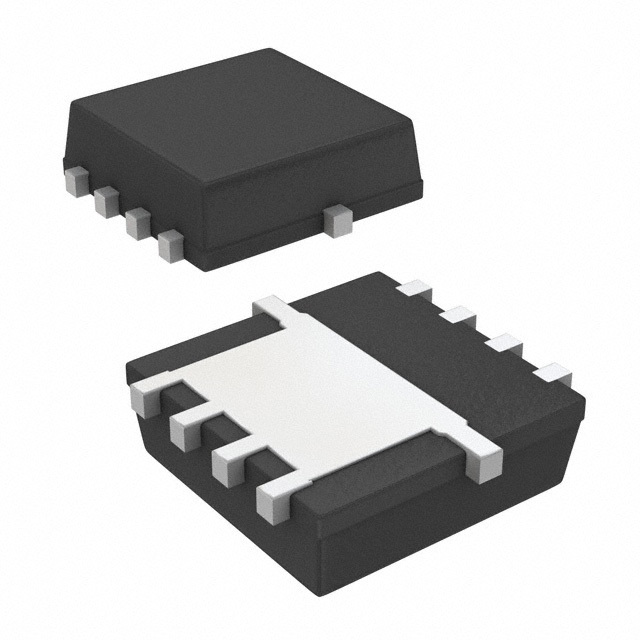

Trans MOSFET N-CH 20V 14A 8-Pin PowerPAK 1212 T/R

10040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±16
Maximum Gate Threshold Voltage (V)	2
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	14
Maximum Drain Source Resistance (mOhm)	4.9@10V
Typical Gate Charge @ Vgs (nC)	20@4.5V
Typical Gate to Drain Charge (nC)	4.9
Typical Gate to Source Charge (nC)	6.3
Typical Reverse Recovery Charge (nC)	20
Typical Output Capacitance (pF)	410
Maximum Power Dissipation (mW)	3800
Typical Fall Time (ns)	10
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	60
Typical Turn-On Delay Time (ns)	10
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	16
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	14
Maximum Power Dissipation on PCB @ TC=25°C (W)	1.5
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	81
Typical Diode Forward Voltage (V)	0.75
Typical Gate Plateau Voltage (V)	2.5
Typical Reverse Recovery Time (ns)	30
Maximum Diode Forward Voltage (V)	1.2
Minimum Gate Resistance (Ohm)	0.7
Maximum Gate Resistance (Ohm)	2.1
Original Package	PowerPAK 1212
Pin Count	8
Standard Package Method	PowerPAK 1212
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	3.05
Package Width	3.05
PCB changed	8
