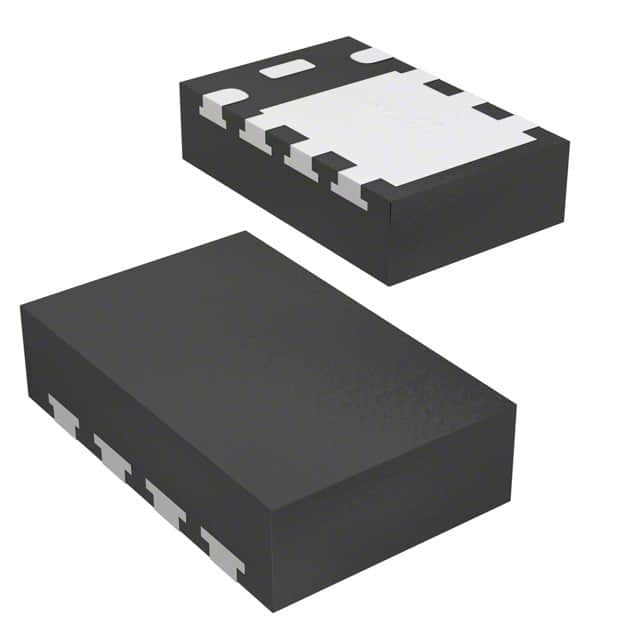

SI5419DU-T1-GE3

SKU: 120456

Manufacturer: Vishay

Trans MOSFET P-CH 30V 12A 8-Pin PowerPAK ChipFET T/R

5820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	12
Maximum Drain Source Resistance (mOhm)	20@10V
Typical Gate Charge @ Vgs (nC)	30@10V
Typical Gate Charge @ 10V (nC)	30
Typical Input Capacitance @ Vds (pF)	1400@15V
Maximum Power Dissipation (mW)	3100
Typical Fall Time (ns)	12
Typical Rise Time (ns)	33
Typical Turn-Off Delay Time (ns)	30
Typical Turn-On Delay Time (ns)	47
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAK ChipFET
Pin Count	8
Standard Package Method	Chip FET
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	3
Package Width	1.9
PCB changed	8
