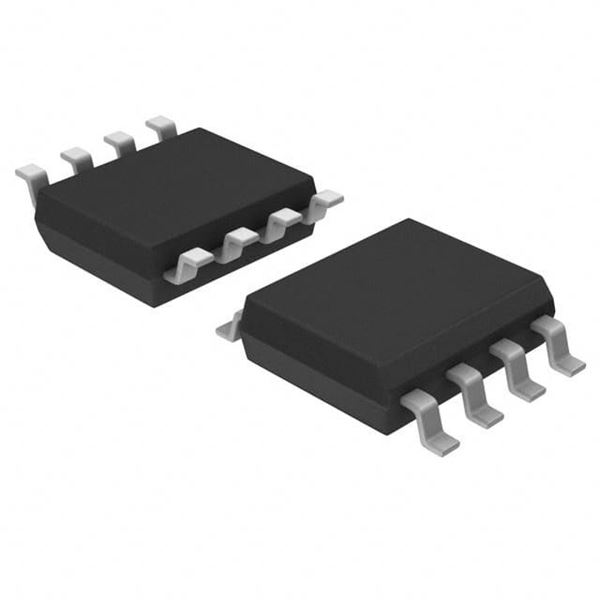

SI4904DY-T1-GE3

SKU: 63908

Manufacturer: Vishay

Trans MOSFET N-CH 40V 8A 8-Pin SOIC N T/R

29900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual Dual Drain
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	±16
Maximum Gate Threshold Voltage (V)	2
Maximum Continuous Drain Current (A)	8
Maximum Drain Source Resistance (mOhm)	16@10V
Typical Gate Charge @ Vgs (nC)	56@10V
Typical Gate Charge @ 10V (nC)	56
Typical Gate to Drain Charge (nC)	9.7
Typical Gate to Source Charge (nC)	5.5
Typical Reverse Recovery Charge (nC)	62
Typical Input Capacitance @ Vds (pF)	2390@20V
Typical Output Capacitance (pF)	270
Maximum Power Dissipation (mW)	2000
Typical Fall Time (ns)	10
Typical Rise Time (ns)	20
Typical Turn-Off Delay Time (ns)	56
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOIC N
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
