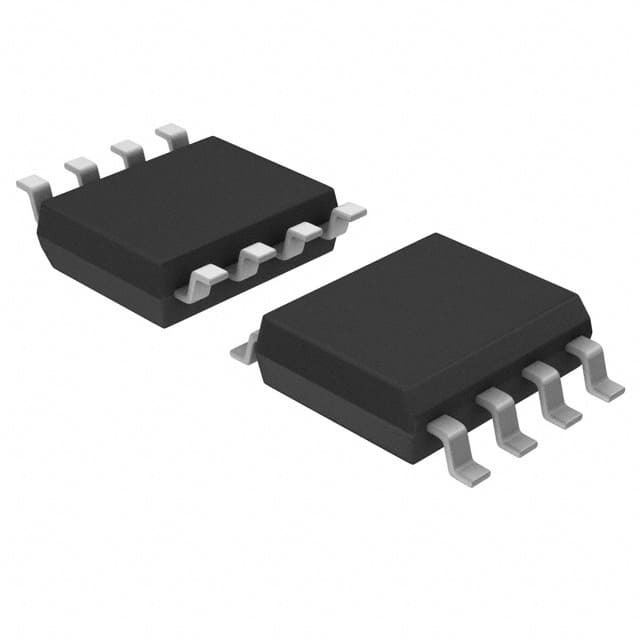

    SI4833BDY-T1-GE3

    SKU: 80388
    Manufacturer: Vishay
    Trans MOSFET P-CH 30V 4.6A 8-Pin SO T/R
    2830 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single Dual Drain
    Channel Mode Enhancement
    Channel Type P
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 30
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 2.5
    Maximum Continuous Drain Current (A) 4.6
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 68@10V
    Typical Gate Charge @ Vgs (nC) 9@10V
    Typical Gate Charge @ 10V (nC) 9
    Typical Input Capacitance @ Vds (pF) 350@15V
    Maximum Power Dissipation (mW) 1750
    Typical Fall Time (ns) 8
    Typical Rise Time (ns) 73
    Typical Turn-Off Delay Time (ns) 12
    Typical Turn-On Delay Time (ns) 28
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package SO
    Pin Count 8
    Standard Package Method SOP
    Terminal Form Surface Mount
    Package Height 1.55(Max)
    Package Length 5(Max)
    Package Width 4(Max)
    PCB changed 8
