SI4599DY-T1-GE3

SKU: 127421

Manufacturer: Vishay

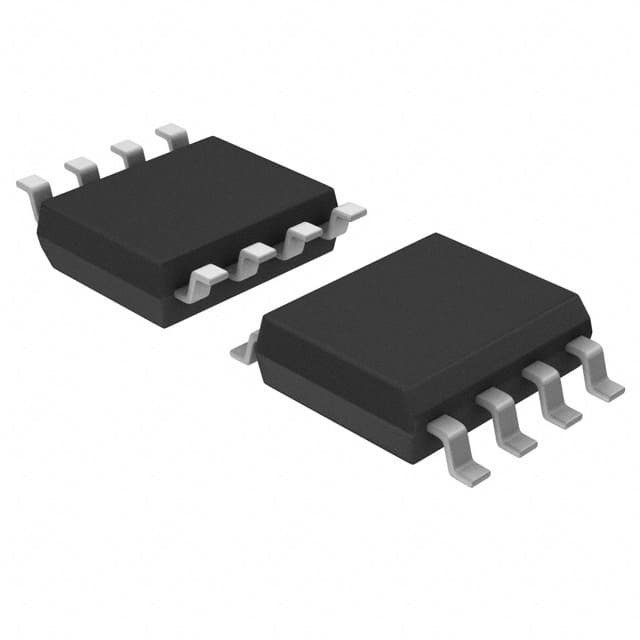

Trans MOSFET N/P-CH 40V 6.8A/5.8A 8-Pin SOIC N T/R

Request Free Samples

4620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual Dual Drain
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	3@N Channel
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	6.8@N Channel
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	35.5@10V@N Channel
Typical Gate Charge @ Vgs (nC)	11.7@10V
Typical Gate Charge @ 10V (nC)	11.7@N Channel
Typical Gate to Drain Charge (nC)	1.7@N Channel
Typical Gate to Source Charge (nC)	1.9@N Channel
Typical Reverse Recovery Charge (nC)	14@N Channel
Typical Input Capacitance @ Vds (pF)	640@20V@N Channel
Typical Reverse Transfer Capacitance @ Vds (pF)	41@20V@N Channel
Minimum Gate Threshold Voltage (V)	1.4@N Channel
Typical Output Capacitance (pF)	73@N Channel
Maximum Power Dissipation (mW)	2000
Typical Fall Time (ns)	9
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	15
Typical Turn-On Delay Time (ns)	7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Power Dissipation on PCB @ TC=25°C (W)	2
Maximum Pulsed Drain Current @ TC=25°C (A)	20
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	120
Typical Diode Forward Voltage (V)	0.78@N Channel
Typical Gate Plateau Voltage (V)	3
Typical Reverse Recovery Time (ns)	19@N Channel
Maximum Diode Forward Voltage (V)	1.2
Minimum Gate Resistance (Ohm)	0.5@N Channel
Maximum Gate Resistance (Ohm)	4.5@N Channel
Maximum Positive Gate Source Voltage (V)	20
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	5.6@N Channel
Original Package	SOIC N
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
