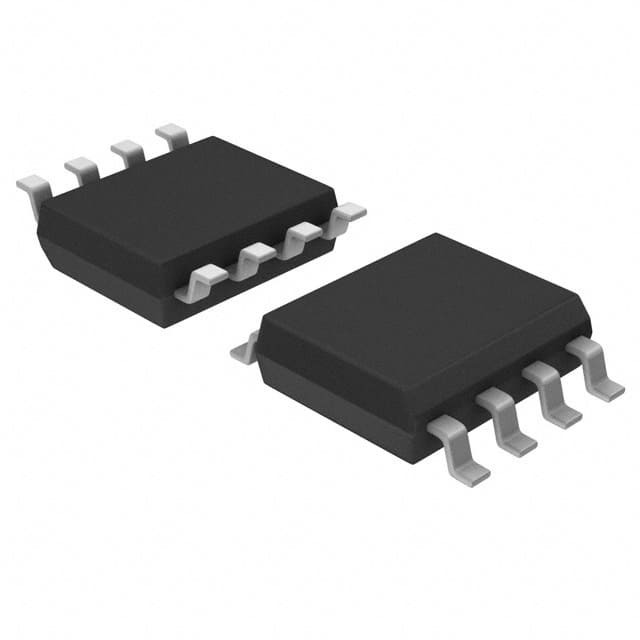

    SI4567DY-T1-E3

    SKU: 28498
    Manufacturer: Vishay
    Trans MOSFET N/P-CH 40V 4.1A/3.6A 8-Pin SOIC N T/R
    3370 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Dual Dual Drain
    Process Technology TrenchFET
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 2
    Maximum Drain Source Voltage (V) 40
    Maximum Gate Source Voltage (V) ±16
    Maximum Continuous Drain Current (A) 4.1@N Channel
    Maximum Drain Source Resistance (mOhm) 85@10V@P Channel
    Typical Gate Charge @ Vgs (nC) 8@10V
    Typical Gate Charge @ 10V (nC) 8@N Channel
    Typical Input Capacitance @ Vds (pF) 355@20V@N Channel
    Maximum Power Dissipation (mW) 1850@N Channel
    Typical Fall Time (ns) 27
    Typical Rise Time (ns) 20
    Typical Turn-Off Delay Time (ns) 31@N Channel
    Typical Turn-On Delay Time (ns) 23@P Channel
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package SOIC N
    Pin Count 8
    Standard Package Method SOP
    Terminal Form Surface Mount
    Package Height 1.55(Max)
    Package Length 5(Max)
    Package Width 4(Max)
    PCB changed 8
