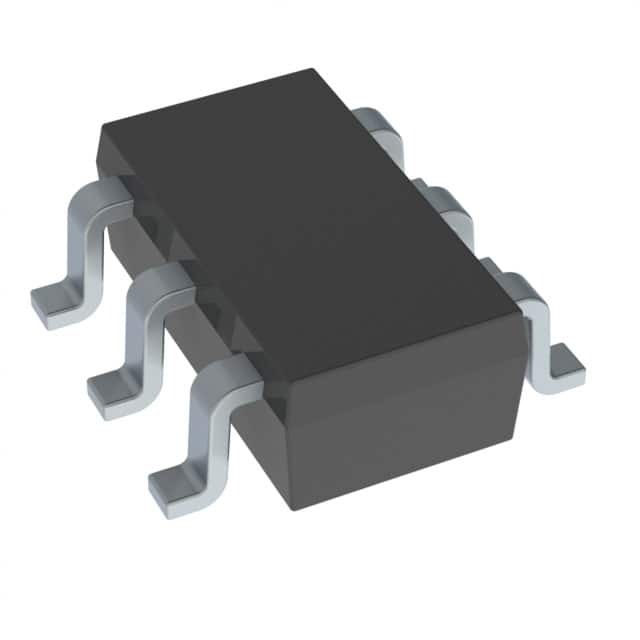

    SI3900DV-T1-GE3

    SKU: 49805
    Manufacturer: Vishay
    Trans MOSFET N-CH 20V 2A 6-Pin TSOP T/R
    970 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.21.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Dual
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 2
    Maximum Drain Source Voltage (V) 20
    Maximum Gate Source Voltage (V) ±12
    Maximum Gate Threshold Voltage (V) 1.5
    Maximum Continuous Drain Current (A) 2
    Maximum Drain Source Resistance (mOhm) 125@4.5V
    Typical Gate Charge @ Vgs (nC) 2.1@4.5V
    Typical Gate to Drain Charge (nC) 0.4
    Typical Gate to Source Charge (nC) 0.3
    Typical Output Capacitance (pF) 48
    Maximum Power Dissipation (mW) 1150
    Typical Fall Time (ns) 6
    Typical Rise Time (ns) 30
    Typical Turn-Off Delay Time (ns) 14
    Typical Turn-On Delay Time (ns) 10
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package TSOP
    Pin Count 6
    Standard Package Method SOP
    Terminal Form Surface Mount
    Package Height 1(Max)
    Package Length 3.05
    Package Width 1.65
    PCB changed 6
