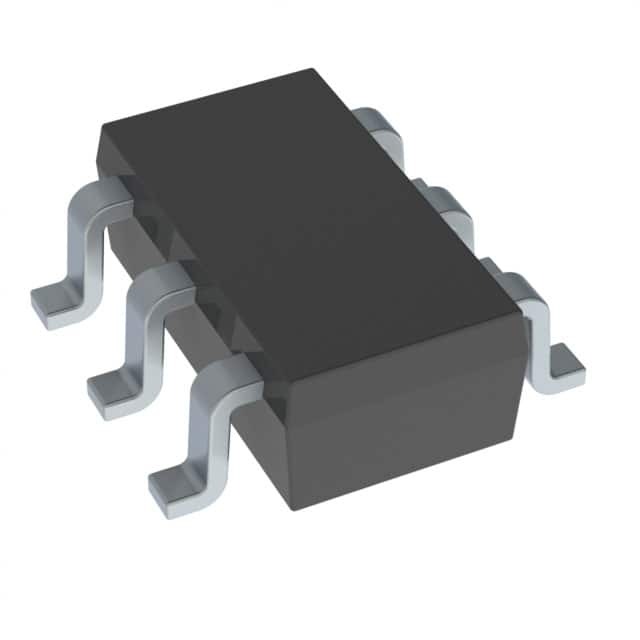

SI3865DDV-T1-GE3

SKU: 28487

Manufacturer: Vishay

Power Switch Hi Side 1-OUT 2.8A 0.11Ohm 6-Pin TSOP T/R

4240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	High Side
Number of Outputs	1
Process Technology	TrenchFET
Minimum Input Voltage (V)	1.5
Maximum Input Voltage (V)	12
Operating Supply Voltage Range (V)	1.5 to 12
Minimum Output Current (A)	2.8(Max)
Switch On Resistance (Ohm)	0.11
Maximum Power Dissipation (mW)	830
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TSOP
Pin Count	6
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3.05
Package Width	1.65
PCB changed	6
