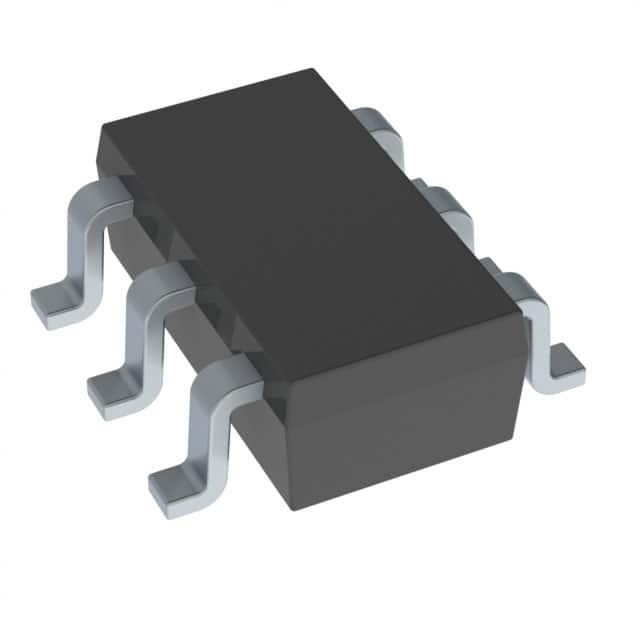

SI3454CDV-T1-GE3

SKU: 21283

Manufacturer: Vishay

Trans MOSFET N-CH 30V 4.2A 6-Pin TSOP T/R

49600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	4.2
Maximum Drain Source Resistance (mOhm)	50@10V
Typical Gate Charge @ Vgs (nC)	2.6@4.5V
Typical Gate Charge @ 10V (nC)	5.3
Typical Input Capacitance @ Vds (pF)	305@15V
Maximum Power Dissipation (mW)	1250
Typical Fall Time (ns)	9
Typical Rise Time (ns)	12
Typical Turn-Off Delay Time (ns)	8
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TSOP
Pin Count	6
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3.05
Package Width	1.65
PCB changed	6
