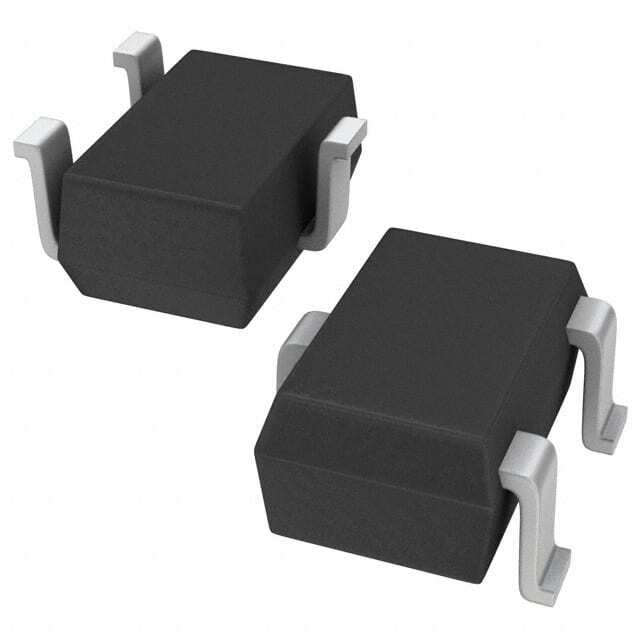

SI1330EDL-T1-GE3

SKU: 91994

Manufacturer: Vishay

Trans MOSFET N-CH 60V 0.24A 3-Pin SC-70 T/R

17520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	0.24
Maximum Drain Source Resistance (mOhm)	2500@10V
Typical Gate Charge @ Vgs (nC)	0.4@4.5V
Maximum Power Dissipation (mW)	310
Typical Fall Time (ns)	9.6
Typical Rise Time (ns)	4.8
Typical Turn-Off Delay Time (ns)	12.8
Typical Turn-On Delay Time (ns)	3.8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SC-70
Pin Count	3
Standard Package Method	SC
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2
Package Width	1.25
PCB changed	3
