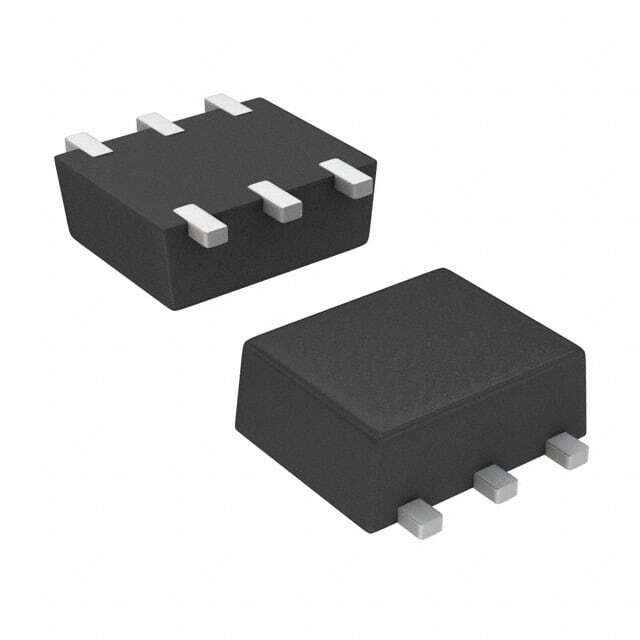

SI1024X-T1-GE3

SKU: 70881

Manufacturer: Vishay

Trans MOSFET N-CH 20V 0.485A 6-Pin SC-89 T/R

15720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	TrenchFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±6
Maximum Continuous Drain Current (A)	0.485
Maximum Drain Source Resistance (mOhm)	700@4.5V
Typical Gate Charge @ Vgs (nC)	750@4.5V
Maximum Power Dissipation (mW)	250
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SC-89
Pin Count	6
Standard Package Method	SC
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	1.7(Max)
Package Width	1.2
