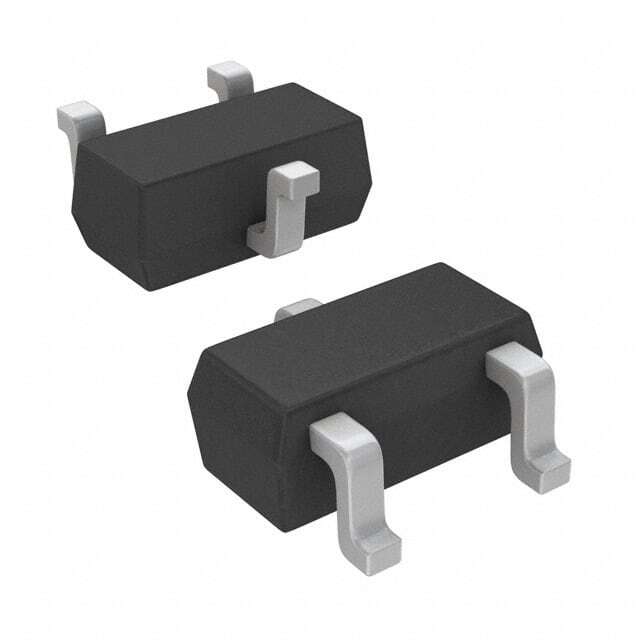

SI1012R-T1-GE3

SKU: 70878

Manufacturer: Vishay

Trans MOSFET N-CH 20V 0.5A 3-Pin SC-75A T/R

72090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±6
Maximum Continuous Drain Current (A)	0.5
Maximum Drain Source Resistance (mOhm)	700@4.5V
Typical Gate Charge @ Vgs (nC)	750@4.5V
Maximum Power Dissipation (mW)	275
Typical Fall Time (ns)	11
Typical Rise Time (ns)	5
Typical Turn-Off Delay Time (ns)	25
Typical Turn-On Delay Time (ns)	5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SC-75A
Pin Count	3
Standard Package Method	SC
Terminal Form	Surface Mount
Package Height	0.7
Package Length	1.58
Package Width	0.76
